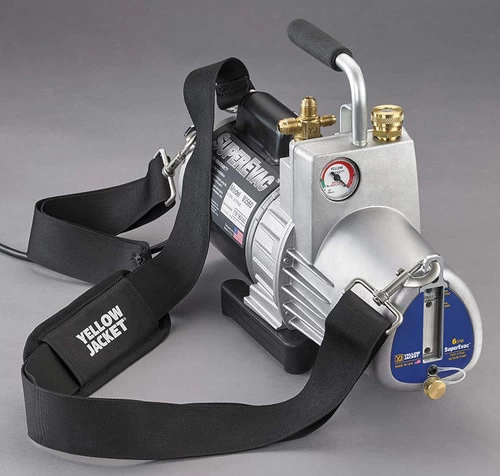

Yellow Jacket 93560 SuperEvac Pump 6 CFM

Yellow Jacket 93560 SuperEvac Pump 6 CFM

• Isolation valve for oil changes without losing vacuum in the system
• Built-in vacuum indicator gauge
• Wide-mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust—threaded to attach garden hose for exhausting to remote location
• Large oil sight glass for easy monitoring of oil level
• Large brass oil drain for easy access to fast oil changes
• Gas ballast valve keeps oil cleaner, longer during evacuation of wet systems
• Internal intake check valve prevents oil backup into the system during a power failure
• Intake filter screen keeps damaging particles from entering the pump
• Heavy duty rotors and bearings
• Heavy duty steel handle with lift hook for well-balanced carrying
• Tethered port caps stay with the pump
• Metal with rubber overlay base for stability
• Made in the USA

Specifications:

• Free air displacement: 4.0 cfm
• Number of stages: 2-stage rotary vane
• Field blankoff: 15 microns
• Intake: 1/4″ and 3/8″ Male ?are
• Motor: 1/2 hp – 1725 rpm
• Thermal overload protection: Yes
• Voltage (single phase): 115V/60 Hz
• Power cord: 6′ – motor mounted switch
• Oil capacity: 36 oz.
• Dimensions: 16″ L x 6″ W x 11.5″ H (40.6 cm x 15.2 cm x 29.2 cm)
• Net weight: 30.3 lbs. (13.7 kg)
