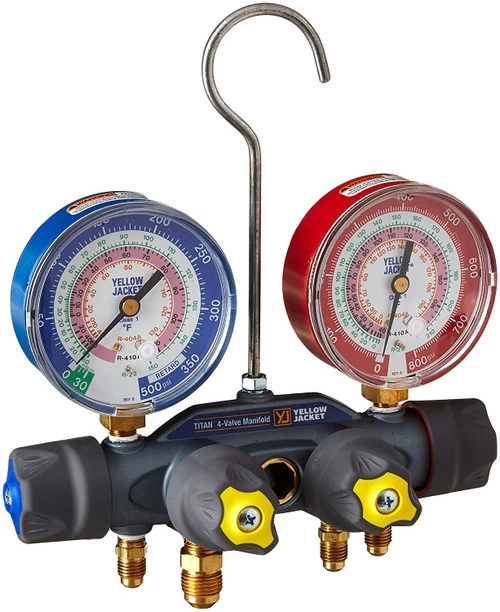

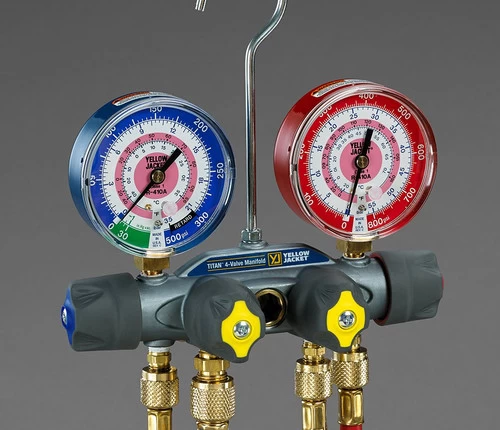

Yellow Jacket 49963 Titan 4 Valve Test And Charging Manifold

Yellow Jacket 49963 Titan 4 Valve Test and Charging Manifold

The Yellow Jacket 49963 Titan test and charging manifold is the first forged aluminum manifold in the industry. The special aluminum alloy construction of the manifold body makes it lightweight for handling ease with the durability and reliability required for repeated, rugged use.

• Manifold only, psi, R22/404A/410A
• Gauge Reads in Fahrenheit
• Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
• Hoses not included
• 3/8″ Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4″)
• Large, easy-to-read 3-1/8″ (90 mm) steel case red and blue, 1% accuracy (Class 1) gauges
• Front access for easy field recalibration
• Double “O” ring piston for reliability and long service life
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
• Contoured easy-grip handles for positive control; color-coded for ready identification
• Sight glass to easily view refrigerant movement and condition during charging and recovery
• Heavy duty hook won’t pull out
• Manifold and hose holder fittings 1/4″-3/8″-1/4″-1/4″ unless otherwise identified
• Made in the USA
