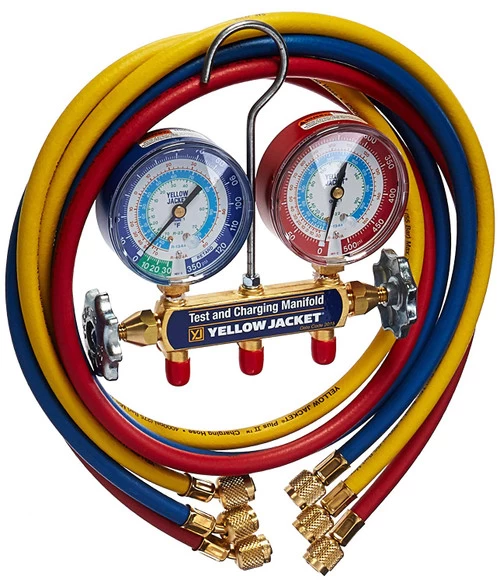

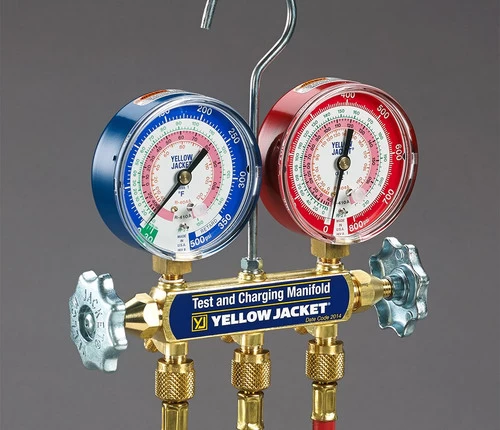

Yellow Jacket 42006 Series 41 Manifold With 3-1/8″ Gauge, Psi, R-22/134A/404A

Yellow Jacket 42006 Series 41 Manifold with 3-1/8″ Gauge, psi, R-22/134A/404A

Yellow Jacket 42006 With 60″ PLUS II, standard fittings, psi, R-22/134a/404A (clamshell). Series 41 manifolds are also available with larger, easier to read 3-1/8″ color-coded gauges in rugged steel cases with polycarbonate crystals. The Yellow Jacket 42006 gauges feature 1% accuracy (Class 1) for an exact reading in critical charge systems.

• Packaged in a clear vacuformed clamshell for easy recognition and review
• Large 3-1/8″ (80 mm) gauges feature steel cases with polycarbonate crystals.
• Gauges have color coded scales and larger dials that are bold and easy to read
• 3-1/8″ (80 mm) steel gauges feature 1% accuracy (class 1) for an exact reading
• LOW Side Gauge: -30″ to 0 to 120 PSI
• HIGH Side gauge: 0 to 500 PSI
• Color-coded scales
• Sliding double “O” ring pistons reduce wear
• Long life nylon seats
• Full porting maximizes capacity and flow
• Forged brass body for durability
• For use with refrigerants: R-22, R-134A, R-404A
• Limited lifetime warranty on manifold bar and valves, NOT gauges
• Made in the USA
