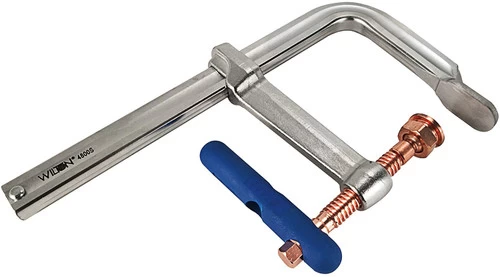

Wilton 86520 4800S-24C 24″ Heavy Duty F-CLAMP COPPER
The top of the line Wilton® Spark-DutyTM series with copper spindle is superior when resisting welding spatter. Every Spark-Duty F-Clamp comes standard with an ergonomic, anti-fatigue Wilton-Grip® and V-Groove pad accessory. Boasting a lifetime warranty, the 4800S series F-Clamps clamp down with 4800 pounds of force.
- Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter.
- Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad.
- Ergonomic Wilton-Grip® has anti-fatigue properties and provides comfort during repetitive clamping.
- Drop forged arm provides minimal flex under heavy work loads.
IDEAL FOR: Industrial Welding
SPECIFICATIONS:
- Clamping Capacity (in): 24
- Throat Depth (in): 7
- Clamping Force (lbs): 4880
- Nominal Rail Size (in): 1-9/16 x 25/32
- Spindle Diameter: 7/8
- Quick-Twist Pads: Yes
- Quick-Twist Plain Pad Stook Number: 2909102
- Quick-Twist Serrated Pad Stock Number: 2909202
- Quick-Twist V-Groove Pad Stock Number: 2909302
- Spindle and T-Handle with Spring Pin Stock Number: 1701603
- Joint with Spring Pin Stock Number: 1701502
- Nut Stock Number: 1701702
