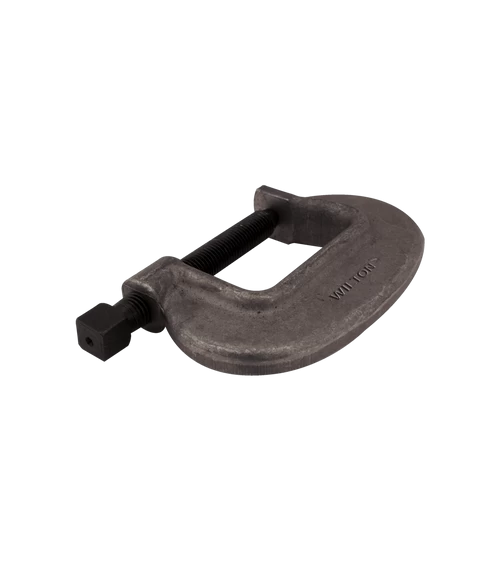

Wilton 14599 12-FC, “O” Series Bridge C-Clamp Full Closing Spindle, 12-3/8″ Jaw

Wilton 14599 12-FC, “O” Series Bridge C-Clamp – Full Closing Spindle, 0″ – 12-3/8″ Jaw Opening, 4-1/2″ Throat Depth

Wilton® Brute Force™ Bridge C-Clamps are ideal for heavy construction and fabrication. Brute Force C-Clamps boast a drop forged frame, black oxide coating, and clamping force ranging up to 40,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.

• The full closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
• Hot upset square head on spindle withstands higher torque
• Square-head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
• Black oxide coated spindle resists corrosion
• Clamping force ranging up to 40,000 lbs.

IDEAL FOR:

• Bridge Building
• Heavy Construction
• Heavy Fabrication
• Ship Building

SPECIFICATIONS:

• Opening Capacity Max (In.): 0 – 12-3/8
• Throat Depth (In.): 4-1/2
• Clamping Force (lbs): 40,000
• Spindle Diameter (In.): 1-1/4
