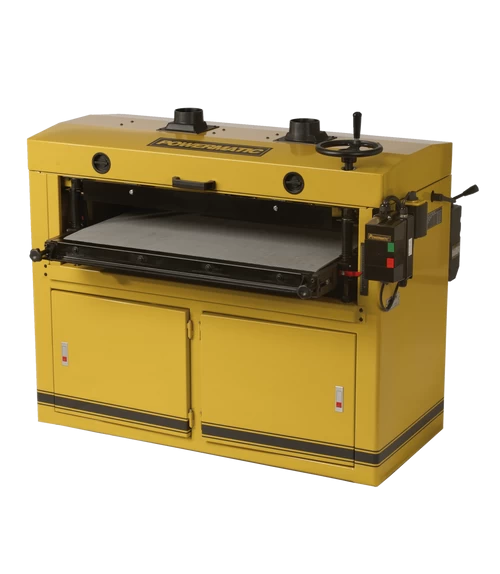

Powermatic 1791320 DDS-237: 37 Inch Dual Drum Sander 7.5HP, 1Ph (Woodworking)

Powermatic 1791320 DDS-237: 37 Inch Dual Drum Sander 7.5HP, 1Ph (Woodworking)

Powermatic 1791320 DDS-237: 37 Inch Dual Drum Sander 7.5HP, 1Ph (Woodworking). This is a production class Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy.

• 7.5HP motor for plenty of power
• Independently adjustable rear drum for fine tuning
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Two-speed gearbox for wide range of sanding projects
• Full size cast iron table for solid support
• Forward/reverse poly conveyor belt grips stock evenly
• Dual dust ports with directional baffles for more efficient dust removal
• The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute.
• The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath
• A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times.
• The heavy-duty poly conveyor belt provides a positive grip on the stock.

Specifications:

• Maximum Board Width: 37
• Minimum Board Length: 9 Inch
• Maximum Board Thickness: 5¼ Inch
• Minimum Board Thickness: 1/32 Inch
• Drum Diameter: 6 Inch
• Sanding Drums (number of drums): 2
• Drum Length: 37 Inch
• Drum Speed: 1700 RPM
• Conveyor Motor: 1/4 HP
• Dust Port Outside Diameter: 4 Inch (dual ports)
• Dust Collection Minimum CFM Required: 1200 cu.ft/min
• Motor Power: 7½ HP
• Motor Voltage: 230 V
• Motor Phase: 1 Ph
• Model Number: DDS-237
• Overall Dimensions: 60 x 45 x 45
• Height: 45 Inch
• Width: 45 Inch
• Length: 60 Inch

Includes :

• 1HP TEFC Motor
• Two push blocks
• Dust collection port
• Cutterhead guard
• Industrial push-button switch
