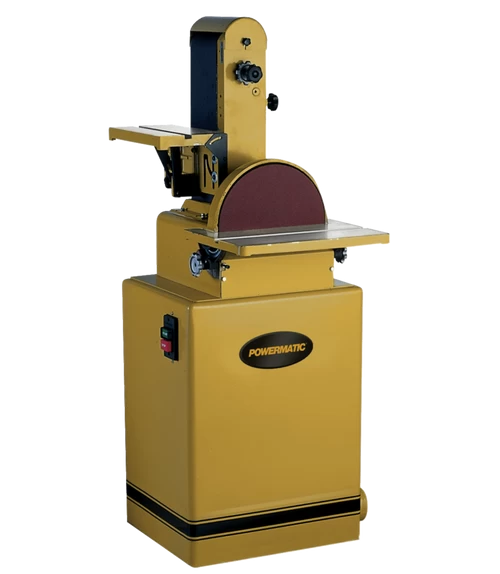

Powermatic 1791291K 31A Belt/Disc Sander, 1.5HP 1PH 115/230V

Powermatic 1791291K 31A, 6 Inch x 48 Inch Belt, 1-1/2HP, 1Ph, 115V/230V, Manual Switch Disc/Belt Sander (Woodworking)

Powermatic 1791291K Model 31A, 6 Inch x 48 Inch Belt, 1-1/2HP, 1Ph, 115V/230V, Manual Switch (Woodworking).Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6 Inch x 48 Inch belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.

• Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops
• Belt and disc tables are precision ground cast iron with miter slots
• Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
• 12″ disc is balanced for flat, even coverage
• The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between
• Loaded with features, the 31A from Powermatic can tackle the most demanding tasks.

Specifications:

• Style: Combination Belt/Disc
• Base Size (L x W x H): 20 x 17 1/4 x 27 1/2 Inch
• Table Working Height: 34 ” disc, 36 Inch belt
• Sanding Arm Locking Positions: 0 °, 45 ° and 90 °
• Belt Size (L x W): 48 x 6 Inch
• Belt Speed: 2410 sfpm

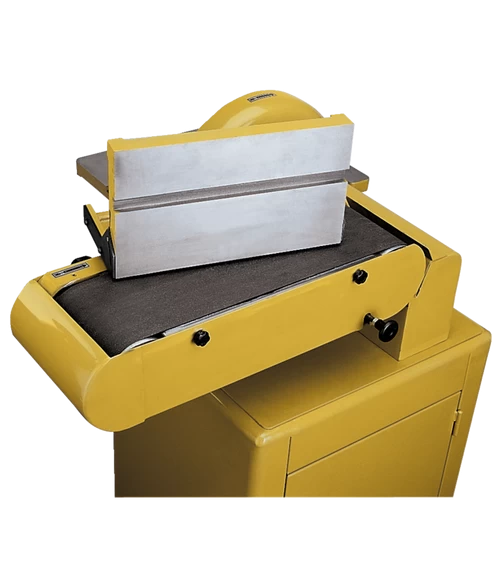

• Belt Table Size (L x W): 13 1/4 x 7 1/2 Inch
• Belt Table Tilt:45 ° down
• Disc Diameter: 12 Inch
• Disc Speed: 2375 RPM
• Disc Table Size (L x W): 17 1/4 x 9 Inch
• Disc Table Tilt: 15 ° up, 45 ° down
• Dust Port Outside Diameter: 4 Inch
• Dust Collection Minimum CFM Required: 400 cu.ft/min
• Motor Power: 1½ HP
• Motor Voltage: 115 / 230 V
• Prewired Voltage: 115 V
• Wiring Remarks: Push button switch
• Motor Current: 14 / 7 A
• Motor Phase: 1 Ph
• Model Number: 31A
• Overall Dimensions: 24 x 31-1/4 x 54-1/2
• Height: 54.5 Inch
• Width: 31.25 Inch
• Length: 24 Inch
