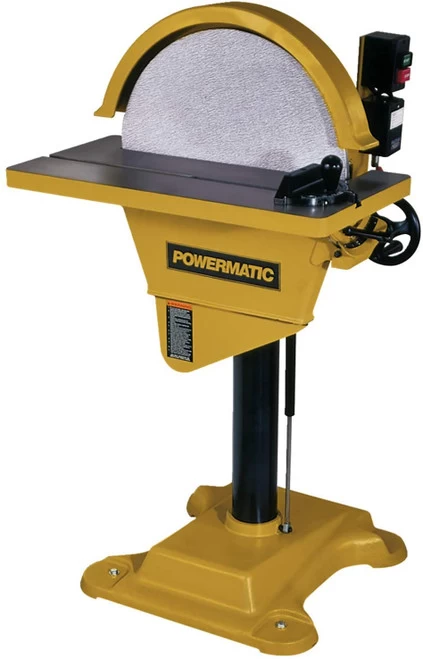

Powermatic 1791276 DS20, 20 Inch 2HP 1PH 230V Disc Sander

Powermatic 1791276 DS20, 20 Inch 2HP 1PH 230V Disc Sander

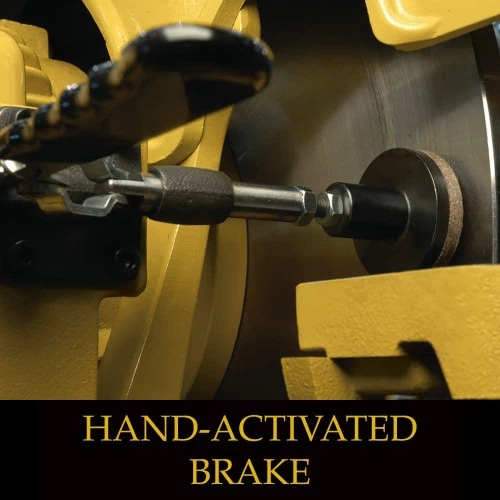

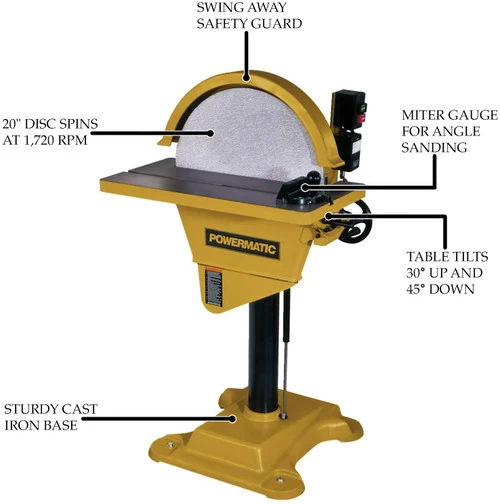

The DS20 20 Inch Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.

• Direct drive from motor to disc for maximum efficiency
• Tilting table allows bevel sanding

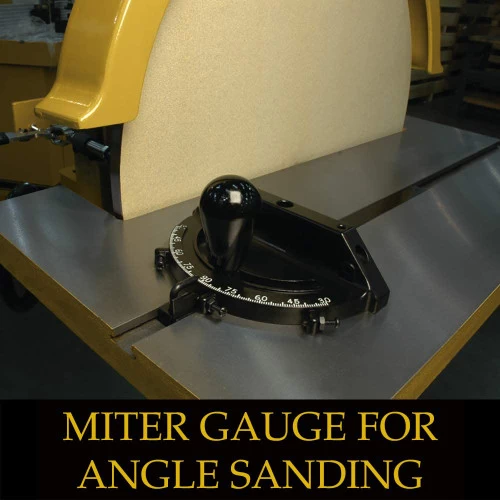

• Miter gauge for angle sanding
• 20 Inch sanding disc for larger workpieces
• 4 Inch port for connection to any dust collection system
• Cast iron base for rigidity

Specifications:

• Disc Diameter: 20 Inch
• Disc Speed: 1720 RPM
• Disc Table Size (L x W): 10 1/2 x 27 1/2 Inch
• Disc Table Tilt: 30 ° up, 45 ° down
• Canister Filter: n.a.
• Dust Port Outside Diameter: 4 Inch
• Dust Collection Minimum CFM Required: 600 cu.ft/min
• Motor Power: 2 HP
• Motor Voltage: 230 V
• Motor Phase: 1 Ph
• Model Number: DS20
• Height: 53 Inch
• Width: 26.5 Inch
• Length: 29.5 Inch
