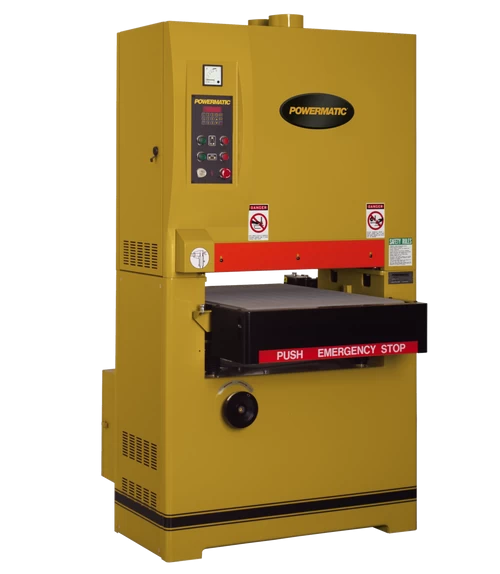

Powermatic 1790825 WB-25, 25 Inch Wide Belt, 15HP, VS, DRO Wide Belt Sander

Powermatic 1790825 WB-25, 25 Inch Wide Belt, 15HP, VS, DRO Wide Belt Sander

Powermatic 1790825 WB-25, 25 Inch Wide Belt, 15HP, VS, DRO (Woodworking). It prevents the belt from running off the end of the drums as well as uses the sanding surface more uniformly without leaving sanding lines on the work piece.

• Centralized controls allow you to access all the needed buttons on one simple panel
• The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project
• Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece

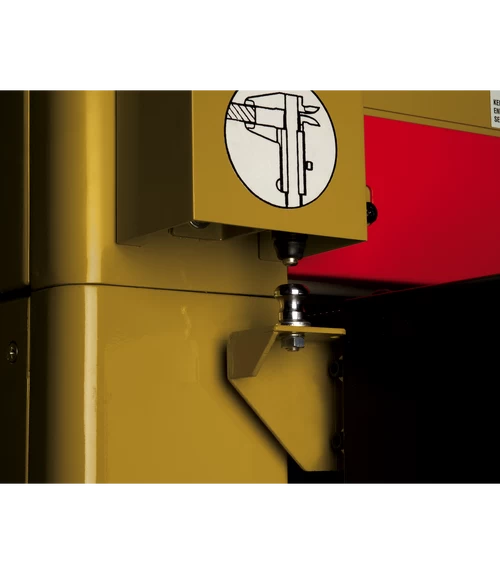

• The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
• The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency

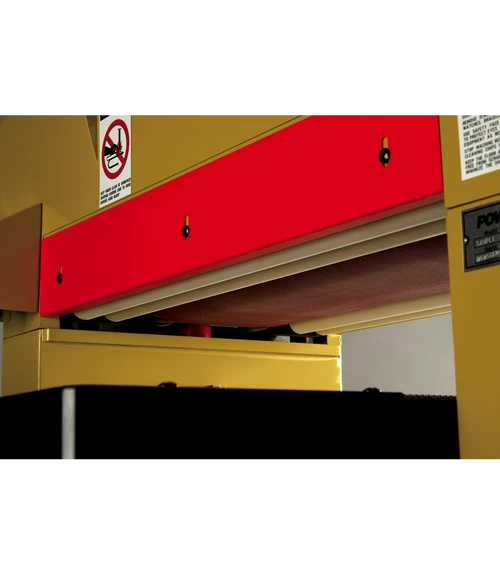

• The electric eye system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
• The three motor system allows for maximum horsepower to independently power the drive drums, the variable speed feed belt, and the feed table

Specifications:

• Working Width: 25 “
• Working Height: 6 “
• Feed Rate: 15 – 49 fpm
• Belt Speed: 2625 sfpm
• Belt Size: 25 x 75 “
• Table Height: 31 3/8 to 37 3/8 “

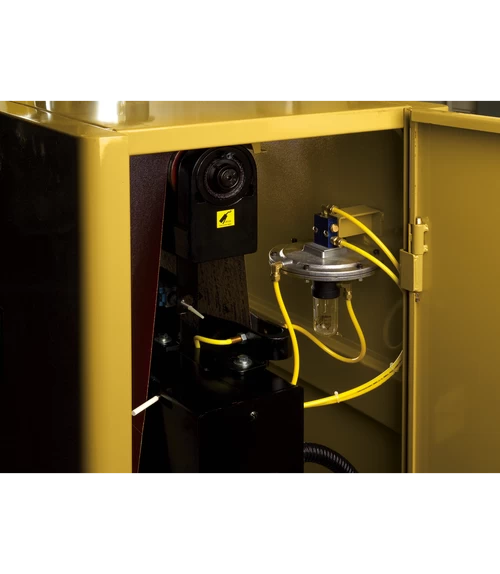

• Air Supply Required: 80 psi
• Dust Port Outside Diameter: 5 “
• Dust Collection Minimum CFM Required: 800 cu.ft/min
• Main Drive Motor Power: 15 HP
• Main Drive Motor Voltage: 230 / 460 V
• Prewired Voltage: 230 V
• Main Drive Motor Phase: 3 Ph
• Feed Motor Power: 1 HP
• Feed Motor Phase: 3 Ph
• Table Lift Motor Power: 1/4 HP
• Overall Dimensions: 52-3/8 x 45-1/4 x 84-5/8
• Height: 84.625 inch
• Width: 45.25 inch
• Length: 52.375 inch

Includes:

• 2 Sanding belts (100 and 180 Grit)
• Graphite platen
• Tool box
