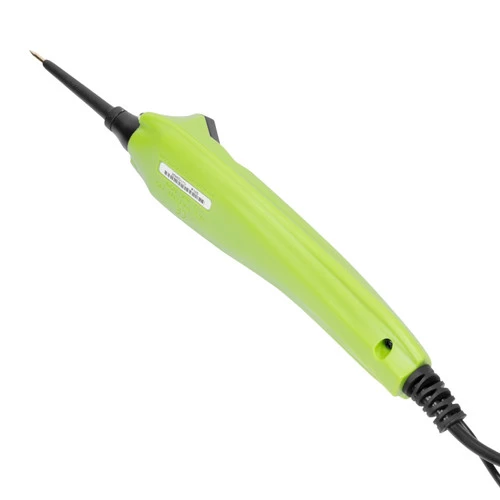

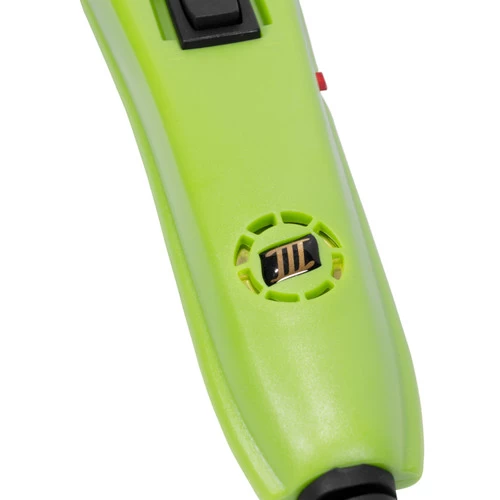

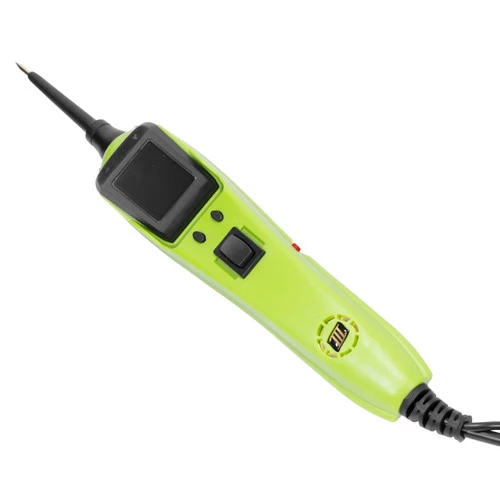

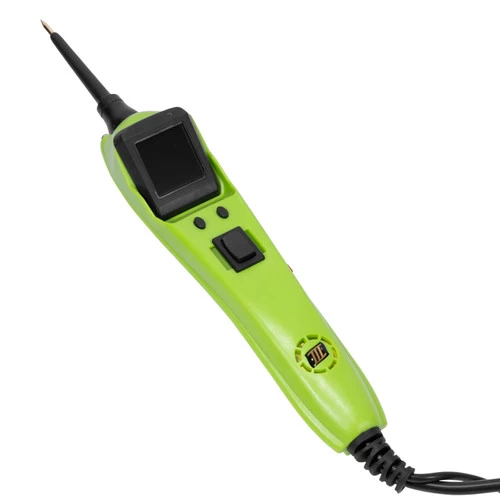

Power Probe PP3EZGRNCS Power Probe 3EZ Clamshell – Green

Power Probe PP3EZGRNCS Power Probe 3EZ Clamshell – Green

• Easy Learning – Teaches a new user how to use the functions in the tool.
• Easy Diagnostics – Guides a user through simple tests such as Battery Testing, Charging System Testing, Fuse Testing, and Voltage Checks. Simply scan the QR Code with your Smart Device, which will link to a video to guide the user to perform these tests.

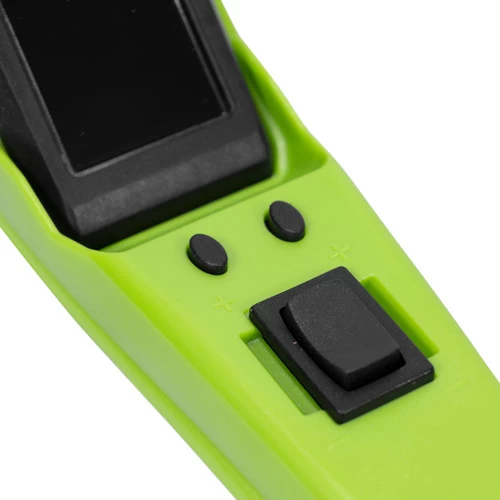

• The easy to read LCD display – Provides easy to see readings with a simple navigation menu to get to what you need fast.
• Upside Down? No Problem!With a new flip screen feature, you can see screen readings while holding the tool upside down.
• Safety First. The 8 amp thermal circuit breaker provides protection while powering up components, relays or circuits while still allowing inrush current for larger draw components.
• It’s Menu Driven. The PP3EZ has a menu driven screen that makes navigating a breeze for easier diagnosing of electrical issues.
• This is an essential electrical tool. The PP3EZ is an all-in-one tool with DC Voltmeter, MIN, MAX, and Peak to Peak mode, along with audio signal capability (AC Threshold).
  Storage temperature/humidity: -20 to 70 °C, 70% RH max
  Operating temperature/humidity: -10 to 50 °C, 70%RH max
  Pollution degree:2

• Voltage & Polarity testing
• Continuity testing
• Activating components out of the vehicle’s electrical system
• Activating electrical components in the Vehicle
• Activating electrical components with ground
• Testing trailer lights and connections
• Checking for bad ground contacts
• Red/Green Indicator & Audio Tone
• DC 0 to +70V +1 Digit
• P-P 0 to +70V
  The frequency response for tone pass through
• 10Hz to 10kHz
  PP Display
• 15 Hz Square Wave
• 35 Hz Sine Wave
  Power Probe Mode – Continuity to ground
• First level – Display is enabled less than 20 K Ω
• Second level – Green LED is enabled less than approx. 600 Ω
  – & +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
  Peak to Peak Mode
• 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• Threshold for PPAC/Audible passthrough
  OverVolt Warning!!
  If the probe tip connects to a voltage greater than +70 Volts the display will show an “Over Volt” warning. Remove the probe tip immediately to prevent internal damage to the tool.
  Over Load Warning
  If the probe is connected to a battery with a voltage greater than 34 VDC the display will show an “Over Load” warning.

Circuit Breaker
8 amp thermal response – Manual reset

Typical Response
8 amps          10amps      15amps     25amps    Short Circuit
No Trip          20min       6 sec.         2 sec.        0.3 sec.

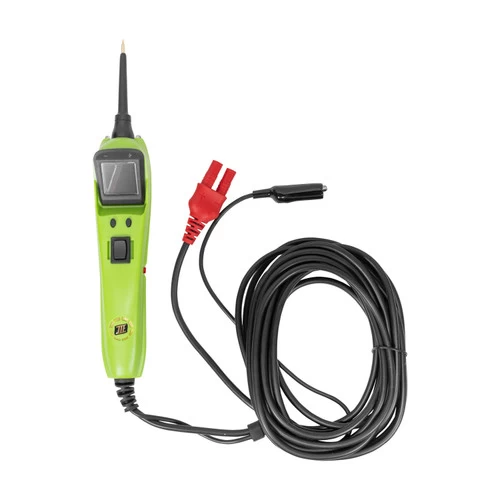

The PP3EZCS Kit includes:

• Power Probe 3EZ
• Probe Tip

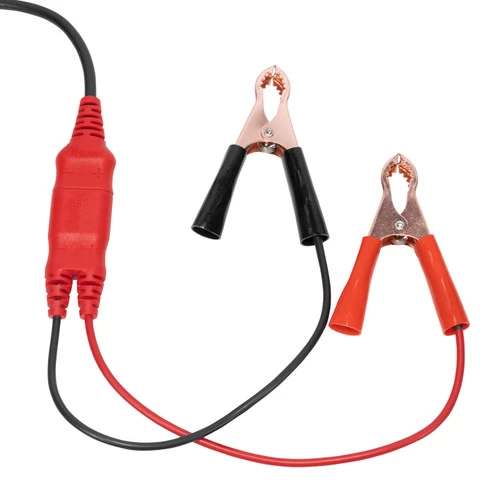

• Battery Clip-Set
