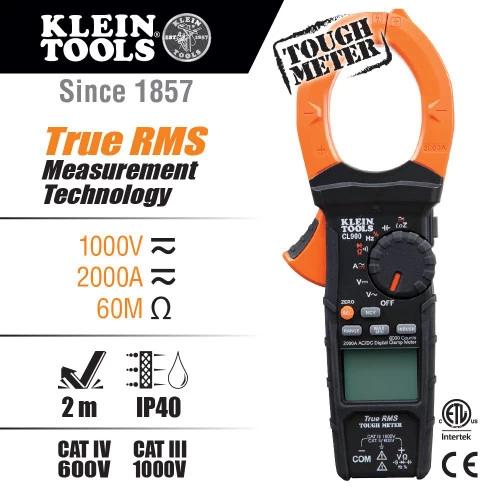

Klein CL900 Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp
The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.
- Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
- Rugged Klein ”TOUGH METER” industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
- Backlit display for clear visibility in environments with low ambient lighting
- Dedicated mode for capturing Inrush Current
- Non-contact voltage tester integrated into the clamp
- Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
- Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
- Clamp measures AC and DC current
- Powers off automatically after 30 minutes of non-use to conserve battery life
- Low battery indicator and easily accessible battery compartment

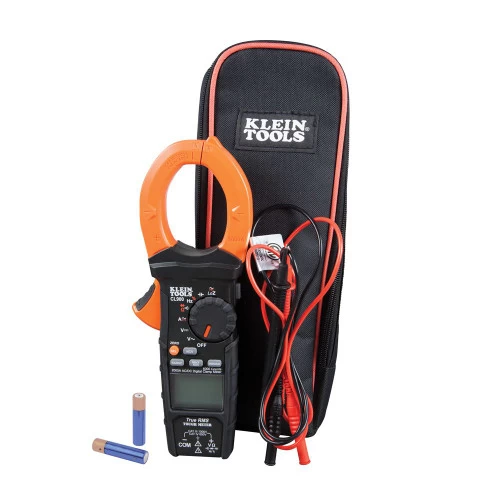

- Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
- Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
Specifications:
- Type: Clamp Meter
- Application: Measures Current to 2000A AC/DC
- Special Features: Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester
- Material: Plastic/Electronics
- Batteries: 2 x AAA
- Auto-Power Off: Yes
- Jaw Size: 2” (5 cm)
- Drop Protection: 6.6′ (2 m)
- Display: 6000 Count LCD
- Functions: Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
- Voltage: 1000V AC/DC
- Frequency: 500kHz
- Current: 2000A AC/DC
- Capacitance: 6000µF
- Ohms (Resistance): 60M?
- AC Voltage: 1000
- DC Voltage: 1000
- DC Polarity Indicator: Yes
- DC Micro-Amp: No
- Ingress Protection: IP40
- Standard: CAT IV 600V, CAT III 1000V
- Included: Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries
- Overall Length: 10.39” (26.4 cm)
- Overall Height: 1.70” (4.3 cm)
- Overall Width: 3.90” (9.9 cm)
- Weight: 17.60 oz (499.0 g)
- UPC: 92644692352
