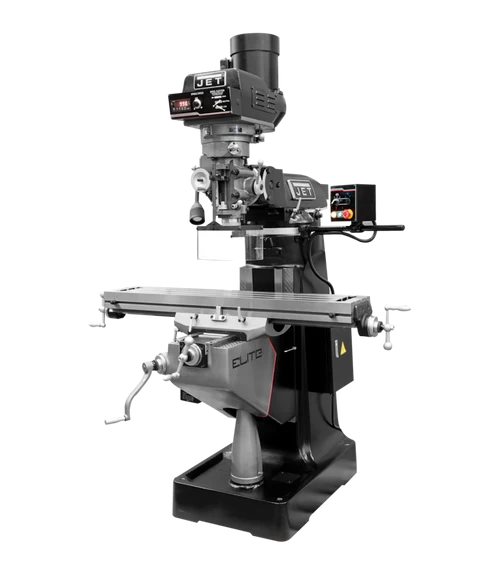

Jet 894040 ETM-949 Mill With 2-Axis ACU-RITE MILLPWR CNC

Jet 894040 ETM-949 Mill With 2-Axis ACU-RITE MILLPWR CNC

Elite offers World Class Mills fully loaded with features. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. For operator safety all Elite Mills are CSA / CUS Certified and all come with a spindle safety guard.

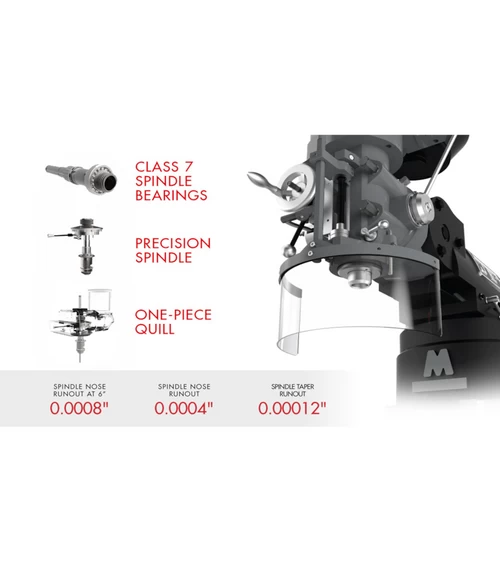

• Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012″
• Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
• Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
• The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
• Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load

Specifications:

• Table Size (L x W) (In.):  9 x 49
• Spindle Taper (In. x TPI):  R-8
• Quill Diameter (In.):  3-3/8
• Number of Spindle Speeds:  Variable
• Range of Spindle Speeds (RPM):  60 – 4,500
• Quill Down Feed Rates (IPR):  0.0015 – 0.003 – 0.006
• Spindle Travel (In.):  5
• Head Movement (Deg.):  90° R & L 45° F & B
• Max Distance Spindle to Table (In.):  18-3/4
• Distance Spindle to Column (Max.) (In.):  21-2/5
• Distance Spindle to Column (Min.) (In.):  6
• Collet Capacity:  1/8 – 7/8
• Table Longitudinal Travel (In.):  35
• Table Cross Travel (In.):  12
• T-Slots Number and Size (In.):  3 and 5/8
• T-Slot Centers (In.):  2-1/2
• Work Table Weight Capacity (Lbs.):  550
• Travel of Knee (In.):  16
• Travel of Ram (In.):  14
• Motor (HP):  3 HP, 230V, 3 Ph
• Ampearge Draw @ 230V 3Ph:  18
• Amperage Draw @ 460V 3Ph:  9
• Prewired (V.):  230
• Overall Dimensions (L x W x H) (In.):  68 x 63 x 84
• Weight (Lbs.):  2300
• Number of Axis:  2-Axis
• Style (Type):  Variable Speed
