Jet 891115 EVBS-26, 26″ Vertical Bandsaw

Jet 891115 EVBS-26, 26″ Vertical Bandsaw

Elite Vertical Bandsaws are the perfect blend of power and balance. Featuring variable speed drivetrains with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations, and CSA / CUS Certification make Elite vertical bandsaws the choice for precision sawing of ferrous and non-ferrous materials.

• Variable speed drivetrain allows operators to fine tune the blade speed fast and easily
• Precision balanced cast-iron blade wheels transmit speed and torque to the blade

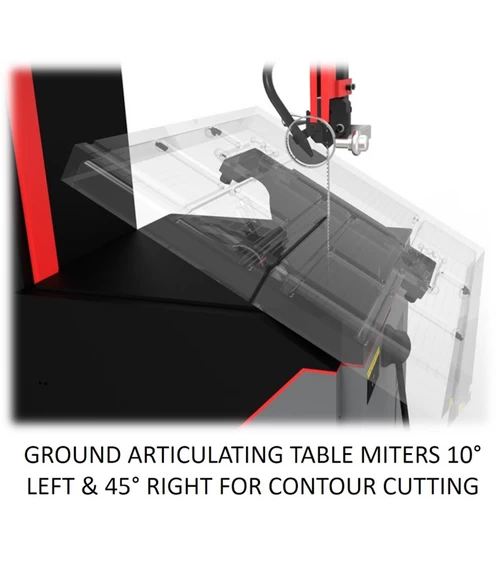

• Precisely ground, articulating table with 10° left and 45° right movement for contour cutting at any angle
• Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view

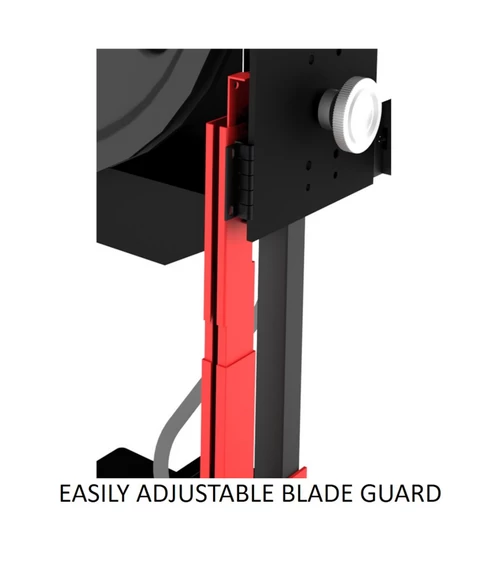

• Easily adjustable blade guard for increased safety
• Heavy-duty conpletely enclosed steel frame provides strength and rigidity
• Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extendes blade life
• Handwheel with blade tensioning gauge acurately measures blade pressure to prevent breakage
• 4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
• For added safety, the EVBS-26 Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
• Standard Equipment
• Bi-metal blade
• Protractor
• Work lamp
• Rip fence
• Chip Pan

Specifications:

• Height Capacity (Max.) (In.): 14
• Throat Capacity (In.):  26
• Blade Length (In.):  1/4 x .025 x 185-1/2
• Blade Width (Min.-Max.) (In.):  1/8 – 1
• Blade Speeds (SFPM): Variable 50-5000
• Table Size (L x W) (In.):  27-1/2 x 23-1/2
• Table Height (In.):  39-3/8
• Table Tilt (Deg.):  10 L & 45 R
• Motor (HP):  3 HP, 230/460V, 3Ph
• Ampearge Draw @: 230V 3Ph 18
• Amperage Draw @: 460V 3Ph 9
• Welding voltage (V): 4.2 KVA Bi-Metal Welder
• Overall Dimensions (L x W x H) (In.): 51 x 32 x 83-1/2
• Weight (Lbs.): 1433
