Jet 725004K The JPS-10 1.75 HP 115V 30″ Proshop Tablesaw With Steel Wings

Jet 725004K The JPS-10 1.75 HP 115V 30″ Proshop Tablesaw with Steel wings

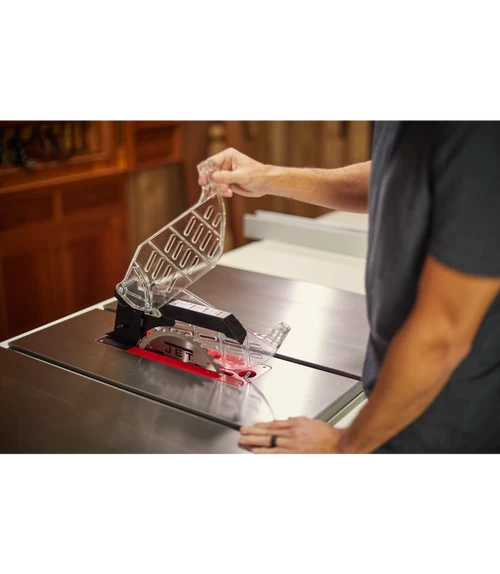

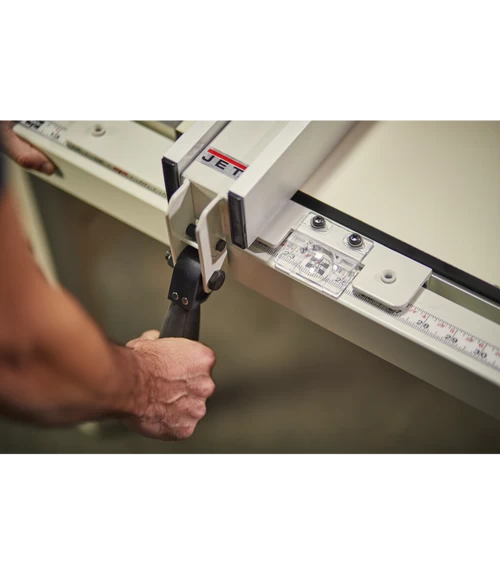

The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30″ or 52″ rip capacity.

• Newly designed arbor lock to change blades quickly and easily
• Quick release riving knife for hassle free riving knife changes
• Improved dust shroud around blade for greater dust collection
• Convenient, magnetic paddle switch for the safest operation possible
• Innovative single belt design for easier belt tensioning and reduced vibration.
• Motor reset switch conveniently relocated to the power switch, instead of the motor
• Low profile riving knife included
• Redesigned guard for better protection and ease of use
• On board storage for all included accessories
• CSA certified

Specifications:

• Style (Type): Contractor
• Blade Diameter (In.): 10
• Arbor Diameter (In.): 5/8
• Arbor Speed (RPM): 4000
• Maximum Depth of Cut (In.): 3-1/8
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
• Maximum Rip Left of Blade (In.): 13-1/2
• Maximum Rip Right of Blade (In.): 30
• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 8.81
• Maximum Diameter of Dado (In.): 8
• Maximum Width of Dado (In.): 13/16
• Table Type: Cast Iron
• Table Height from Floor (In.): 34-3/4
• Table Size (L x W) (In.): 20 x 27
• Table Size with Extension (L x W) (In.): 44 x 27
• Miter Gauge Type: T-Slot with Stops
• Dust Collection Minimum CFM Required (CFM): 350
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 1-3/4
• Motor Phase (PH): 1
• Motor Voltage (V.): 115
• Prewired Voltage (V.): 115
• Motor Amps: 14.8
• Recommended Circuit Size (Amps.): 20
