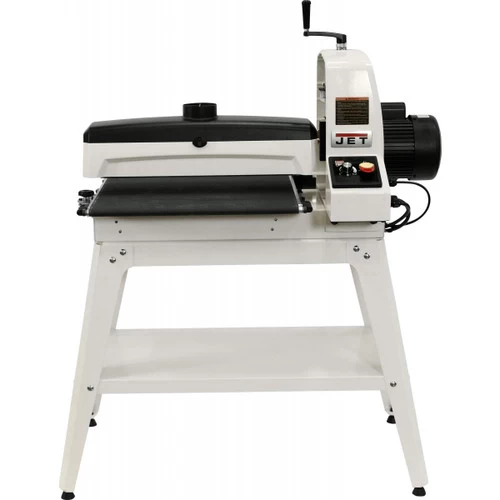

Jet 723540OSK JWDS-2244 Drum Sander With Open Stand

Jet 723540OSK JWDS-2244 Drum Sander with Open Stand

Introducing the newly re-designed 2244 Drum Sander from JET. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task.

Features:

• Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
• Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

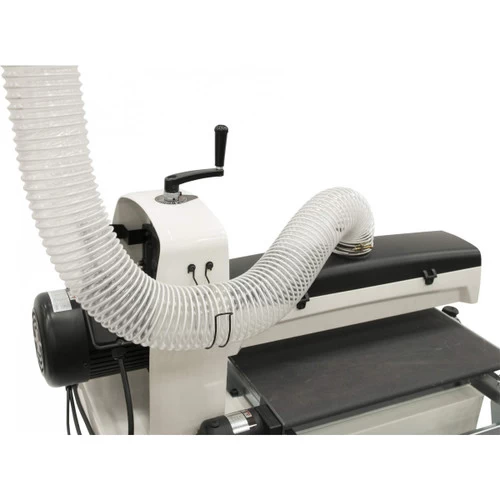

• Dust hood includes an integrated channel that mirrors the shape of the drum and directs dust to the 4″ collection port

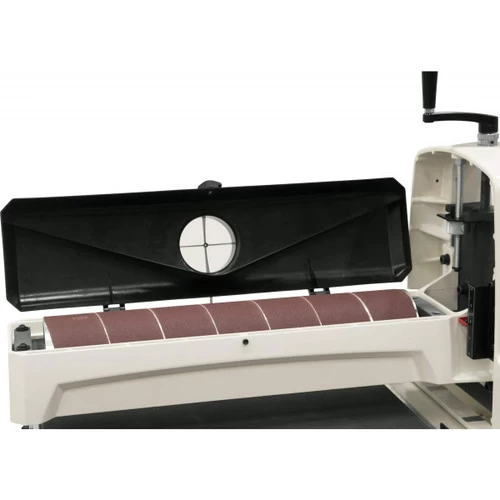

• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat to extend the life of the sandpaper as well as protect the work surface from heat damage
• Die cast drum carriage design is optimized for rigidity to provide years of consistent quality
• Precision-flattened reinforced steel conveyor bed
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing
• One rotation of the top-position handwheel adjusts the drum height by 1/16″
• The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
• Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
• Toolless abrasive take-up clips make changing abrasives quick and easy
• Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
• Separate feed and drum motors provide independent control, optimizing the performance of the sander
• Conveyor belt TRACKERS™

Specifications:

• Maximum Board Width (In.) 44 (two passes)
• Maximum Board Thickness (In.) 4
• Minimum Board Length (In.) 2-3/8
• Minimum Board Thickness (In.) 1/32
• Drum Diameter (In.) 5
• Drum Length (In.) 22
• Drum Speed (RPM) 1,720
• Conveyor Motor 43 in.-lbs. torque, direct drive, dc
• Conveyor Speed (FPM) 0 – 10 Dus
• t Port Outside Diameter (In.) 4
• Style (Type) Open Stand Motor Amps 15
• Motor Power (HP) 1-3/4 Motor Phase (PH) 1
• Motor Voltage (V) 115 Net Weight (lbs.) 215
