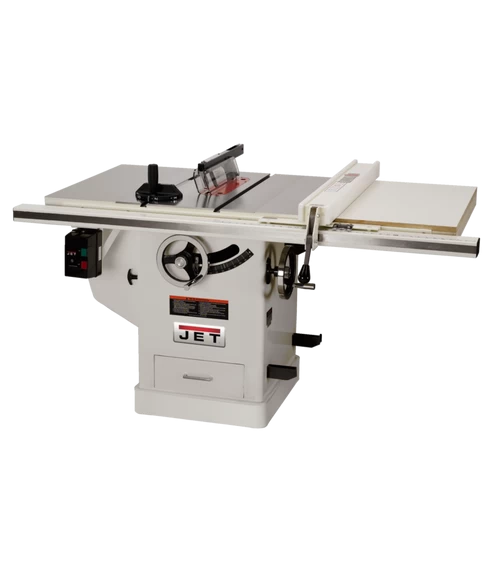

Jet 708674PK XACTASAW Deluxe 3HP, 1Ph, 30 Inch Rip Table Saw (Woodworking)

If you’ve ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10″ DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26″ x 30″ wings and deeper table gives you even more cast iron to work on. A built-in 12.5″ x 18″ x 4 ” storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.

• EXCLUSIVE 50 Inch Commercial XACTA Fence II with T-square design
• Quick release riving knife greatly reduces binding/kickback risk
• Push button arbor lock (patent pending) for rapid blade change
• Shrouded Blade increases dust collection efficiency
• Standard 11 Inch left and right cast iron extension wings provides the largest table surface in its class
• Poly-V drive belt system delivers efficient, quiet operation
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Enclosed cabinet with built-in sealed storage drawer
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Built-in 4 Inch port for dust collection
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Independent leaf safety guard protects operator from blade while cutting, even at 45 Degree tilt
• Arbor wrench
• Powder coated paint for a long-lasting, chip-resistant finish

Specifications:

• Arbor Diameter (in.): 5/8
• Arbor Speed (RPM): 4300
• Blade Diameter (in.): 10
• Brand: Jet
• Distance Between Sliding Table and Blade (in.): n.a.
• Dust Collection Adapter Port: n.a.
• Dust Collection Minimum CFM Required: 350
• Dust Port Diameter (OD/in.): 4
• Family : 10 Inch DELUXE XACTA TABLESAWS
• Height: 38 inch
• Leg Stand with Steel Storage: n.a.
• Length: 85 inch
• Maximum Cross Cut (in.): 21
• Maximum Depth of Cut (in.): 3
• Maximum Depth of Cut at 45 Degrees (in.): 2-1/8
• Maximum Diameter of Dado (in.): 8
• Maximum Rip Left of Blade (in.): 13
• Maximum Rip Right of Blade (in.): 50
• Maximum Width of Dado (in.): 13/16
• Miter Gauge Type: Deluxe
• Model Number: JTAS-10XL50-1DX
• Motor Amps: 14.5
• Motor HP: 3HP
• Motor Phase: 1Ph
• Motor Voltage: 230V
• Net Weight: 510 pound
• Overall Dimensions: 38 x 36 x 85
• Part Number: 708675PK
• Prewired: 230V
• Rapid Wing Extension: n.a.
• Ship Weight: 510 pound
• Table Height (in.): 34
• Table in Front of Saw Blade at Maximum Depth of Cut (in.): 10
• Table Size with Standard Extension (L x W/in.): 29 x 42
• Table Size without Extension (L x W/in.): 29 x 20
• Table Size without Wings (L x W/in.): 29 x 20
• Table Type: Cast Iron
• Width: 36 inch
