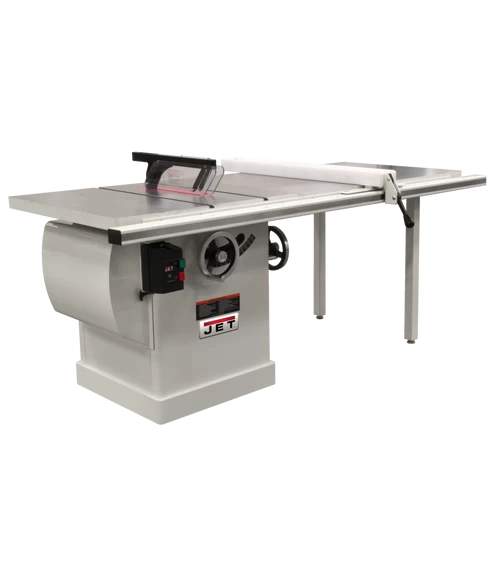

Jet 708546PK JTAS-12-DX 12 Inch Tablesaw (Replacement Of 708536PK)

Jet 708546PK JTAS-12-DX, 5HP 12-in Single Phase Left Tilt Deluxe Table Saw with riving knife and 80-in of solid cast iron work surface is guaranteed to see you through all your projects. The weight of this machine ensures stability for smooth cutting operation. Featuring a maximum rip of 14-in left of the blade for more capacity. Dust collection is improved thanks to a collection shroud around the blade and an integrated hose. All of this is backed byJet industry-leading 5-year warranty.

• Riving knife maintains close blade proximity to reduce chance of kickback
• 80″ of solid cast iron provides a massive work surface
• Poly V-Belt increases efficiency and reduces slipping and vibration
• Collection shroud around the blade and integrated hose improve dust collection
• Integrated arbor lock is accessed from table top for rapid blade change
• External tool storage for the fence and miter gauge
• 40-1/2″ fence provides greater stability and better support when ripping
• Dado insert included
• Maximum rip left of the blade is 14″
• Removal of blade guard, pawls and riving knife only takes seconds

Specification:

• Blade Diameter: 12 Inch
• Arbor Diameter: 1 Inch
• Arbor Speed: 4300 (RPM)
• Maximum Depth of Cut: 4 Inch
• Maximum Depth of Cut at 45 Degrees: 2 7/8 Inch
• Maximum Rip Right of Blade: 50 Inch
• Maximum Rip Left of Blade: 14 Inch
• Table in Front of Saw Blade at Maximum Depth of Cut: 12 Inch
• Maximum Width of Dado: 13/16 Inch
• Maximum Diameter of Dado: 8 Inch
• Table Type: Cast Iron
• Table Size with Standard Extension (L x W): 31 1/2 x 80
• Table Size without Extension (L x W): 31 1/2 x 24
• Table Height From Floor: 34 Inch
• Dust Port Diameter: 4 Inch
• Dust Collection Minimum CFM: 350
• Motor HP: 5 HP
• Motor Phase: 1 Ph
• Motor Voltage: 230 V
• Prewired: 230 V
