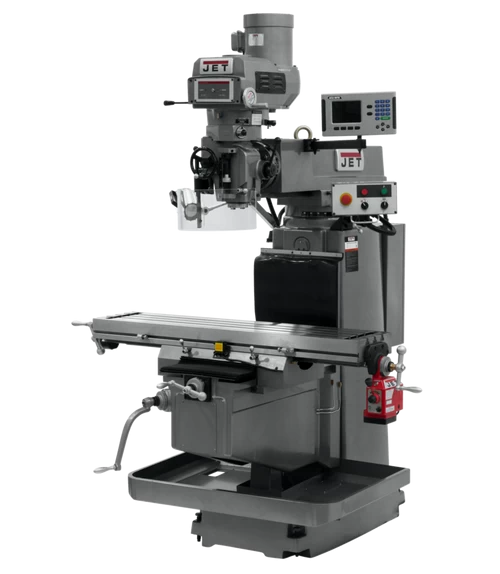

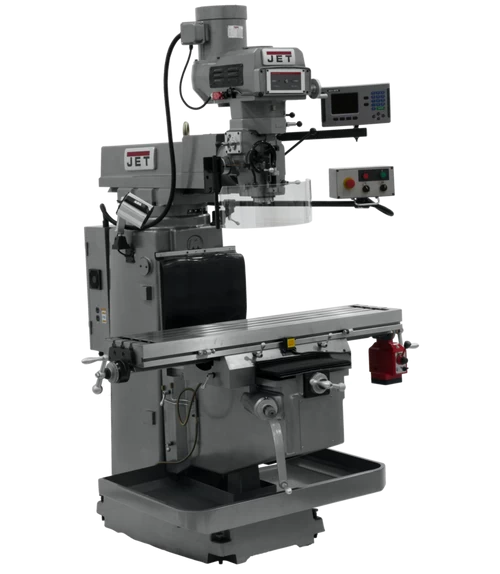

Jet 698049 JTM-1254VS With ACU-RITE 203 DRO, X Powerfeed Milling Machine

Jet 698049 JTM-1254VS with ACU-RITE 203 DRO, X Powerfeed

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you’ve come to expect backed by the industry-leading JET Two Year Warranty.

• Certified Meehanite® Castings
• Precision bored and honed milling head
• High precision Class 7 spindle bearings
• Quick Spindle Feed Nut
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways and table
• Three Precision ground t-slots
• Turcite B on X & Y Axis
• Adjustable gibs throughout
• CSA/CUS: Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified
• Spindle Guard
• Spindle Brake for rapid stopping of the spindle
• Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
• Quick nut for spindle feed
• JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor
• Two 115V outlets on electrical box for Powerfeeds only
• STANDARD EQUIPEMENT
• Spindle Safety Guard
• Led Machine Lamp
• Dual Locks on All Moveable Surfaces
• Chip Pan
• Draw bar
• Tool box with tools

 Specifications:

• Digital Readout ACU-RITE 200S
• Number of Axis 2
• Powerfeed X-Axis
• Spindle Taper (In. x TPI) NST #40
• Table Size (L x W) (In.) 12 x 54
• Quill Diameter (In.) 4-1/8
• Range of Spindle Speeds (RPM) 80 – 3,800
• Quill Down Feed Rates (IPR) .0015–.003–.008
• Spindle Travel (In.) 5
• Head Movement (Deg.) 90°R & L 45° F & B
• Max Distance Spindle to Table (In.) 23
• Distance Spindle to Column (Max.) (In.) 27-3/4
• Distance Spindle to Column (Min.) (In.) 7 1/2
• Collet Capacity 1/8 – 1
• Table Longitudinal Travel (In.) 33-7/8
• Table Longitudinal Travel With Powerfeed (In.) 28-1/4
• Table Cross Travel (In.) 15-1/3
• T-Slot Centers (In.) 2-1/2
• Work Table Weight Capacity (Lbs.) 925
• Travel of Knee (In.) 19-1/4
• Travel of Ram (In.) 25
• Saddle Width (In.) 25-5/8
• Column Width (In.) 14-1/4
• Motor (HP) 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.) 92-1/8 x 79-7/8 x 104-1/4
• Weight (Lbs.) 3696
