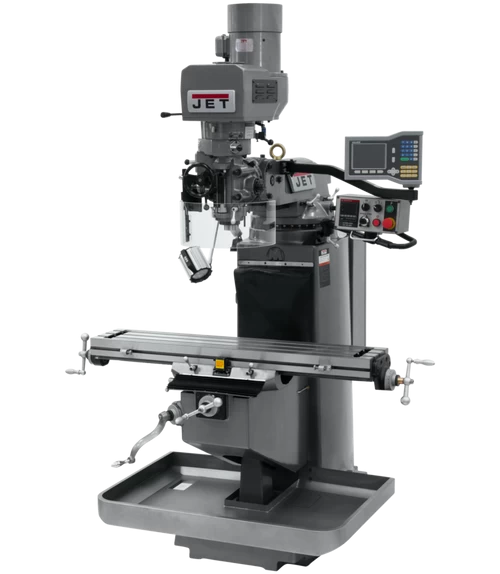

Jet 691500 JTM-949EVS/230V Vertical Milling Machine

Jet 691500 JTM-949EVS/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph

The JTM-1050EVS2/230, 10 Inch x 50 Inch Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you have come to expect and are backed by the industry-leading JET Two Year Warranty.

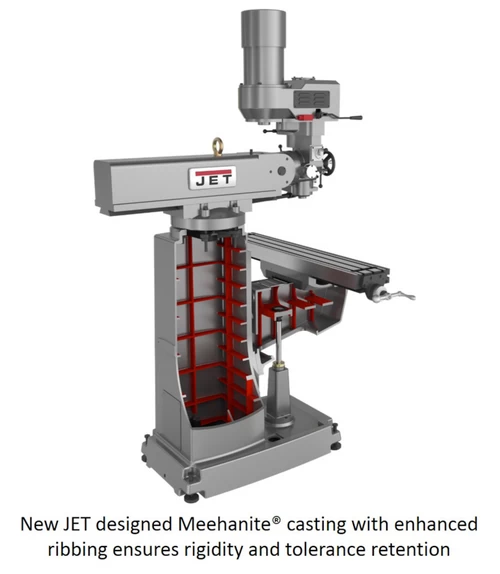

• New! JET designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention

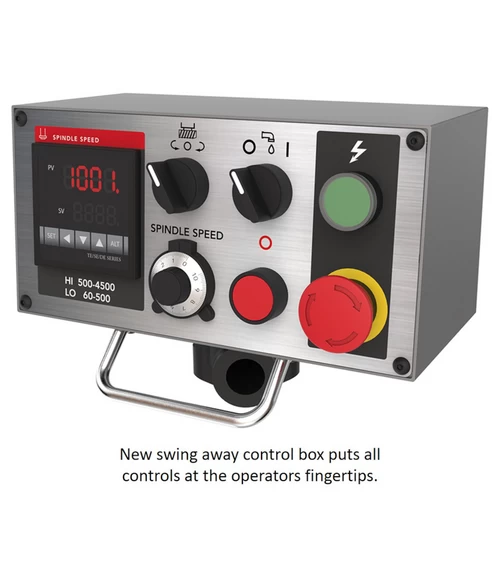

• Swing away control box houses an e-stop and puts all controls at the operators fingertips

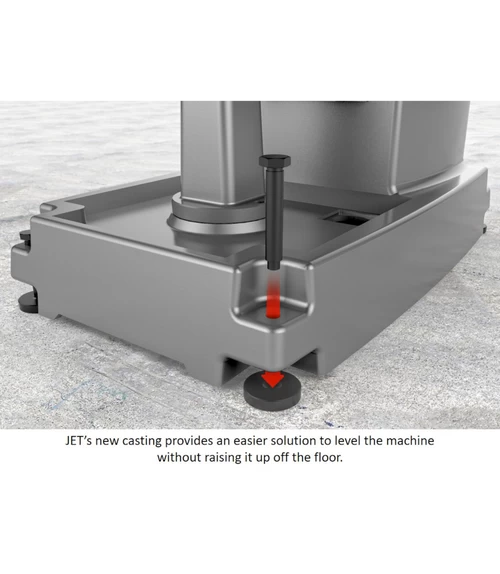

• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
• For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• CSA/CUS Certified
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Spindle head is internally cooled extending bearing, belt and motor life
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
• The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
• Swing away safety shield
• LED work lamp
• Chip pan
• Dual locks on all moveable surfaces
• Way covers
• Drawbar
• Tool box with tools

Specifications:

• Table Size (L x W) (In.):> 9 x 49
• Quill Diameter (In.):> 3-3/8
• Number of Spindle Speeds:> Variable
• Range of Spindle Speeds (RPM):> 60 – 4,500
• Quill Down Feed Rates (IPR):> .0015 – .003 – .006
• Spindle Travel (In.):> 5
• Head Movement (Deg.):> 90 Degree R & L, 45 Degree F & B
• Max Distance Spindle to Table (In.):> 20-3/4
• Distance Spindle to Column (Max.) (In.):> 18-1/8
• Distance Spindle to Column (Min.) (In.):> 4-3/4
• Collet Capacity:> 1/8 – 7/8
• Table Longitudinal Travel (In.):> 36
• Table Longitudinal Travel With Powerfeed (In.):> 30-3/4
• Table Cross Travel (In.):> 12-5/8
• T-Slots Number and Size (In.):> 3 and 5/8
• T-Slot Centers (In.):> 2-1/2
• Work Table Weight Capacity (Lbs.):> 720
• Travel of Knee (In.):> 15-3/4
• Travel of Ram (In.):> 15-1/4
• Saddle Width (In.):> 11-1/2
• Column Width (In.):> 18
• Inverter Type:> Delta, B
• Motor (HP):> 3HP, 230V, 3Ph
• Overall Dimensions (L x W x H) (In.):> 66 x 63 x 86
• Weight (Lbs.):> 2,420
