Jet 691198 JTM-2 Mill With 3-Axis Newall DP700 DRO(Quill) With X-Axis Powerfeed

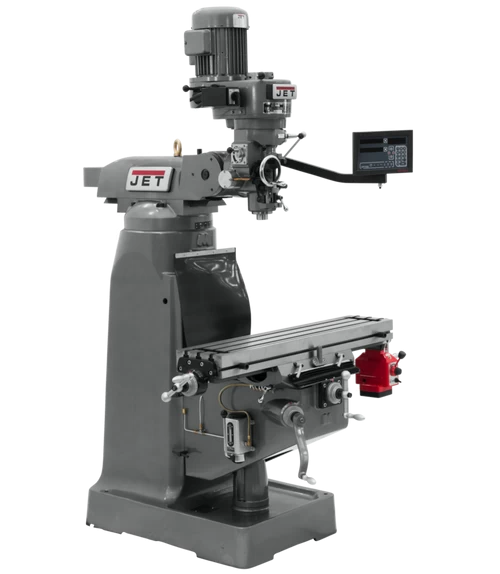

Jet 691198 is a JTM-2 Milling Machine with NEWALL C-80 3-Axis (Quill) DRO and X Powerfeed Installed. Precision bored and honed milling head. Three stage power downfeed with automatic stop. Internal coolant tank built into base for use with coolant system (coolant pump not included).
- Meehanite casting
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Satin chrome finished dials
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Heavy duty spindle brake
- Precision hardened and ground ways
- Precision ground table
- Adjustable gibs throughout
Specifications:
- Motor: 2 HP, 115/230V, 1 Ph, Prewired 230V
- Number of Spindle speeds: 8
- Spindle Taper: R-8
- Quill Diameter: 3-3/8
- Head Movement (deg.): 90° R & L, 45° F & B
- Max Distance Spindle to Table: 17-1/2
- Distance Spindle to Column: 19
- Table Longitudinal Travel: 23-7/8
- Table Cross Travel: 12-1/2
- Collet Capacity: 1/8 – 7/8
- T-Slots Number and Size: 3 and 5/8
- T-Slot Centers: 2-1/2
- Work Table Weight Capacity (lbs.): 550
- Travel of Knee: 14-1/2
- Travel of Ram: 13-3/8
- Quill Travel: n/a
- Quill Travel w/ Powerfeed engaged: n/a
- Quill Down feed Rates (IPR): 0.0015 – .003 – .006
- Range of Spindle Speeds (RPM): 80 – 2720
- Table Size: 9 X 42
- Distance Spindle to Column (min./in.): 4-1/2
- Prewired: 230V
- Height: 82 Inch
- Width: 57 Inch
- Length: 64 Inch
Includes:
- Tolerance test sheet included
- One shot lubrication system
- Way covers
- Draw bar
- Tool box with tools
