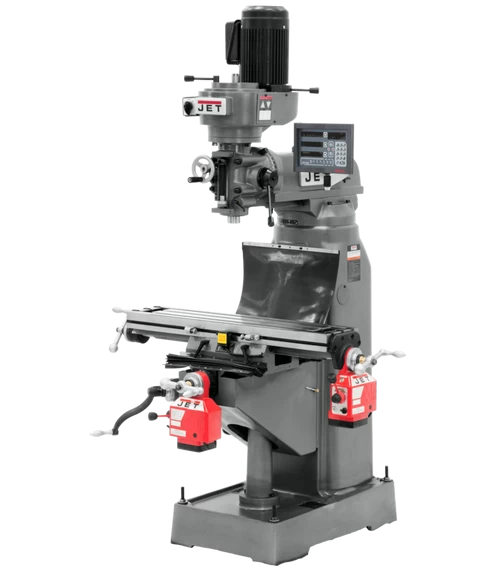

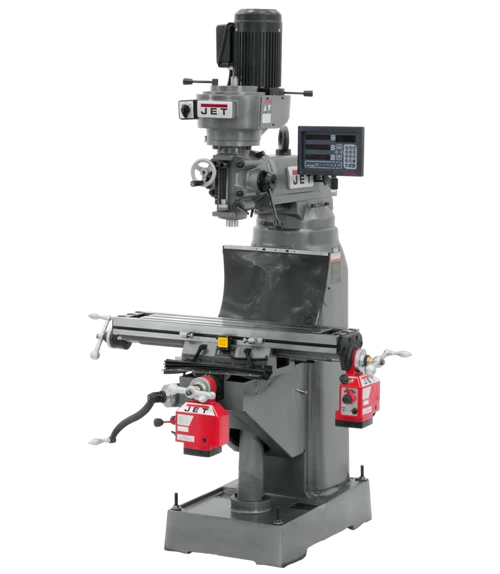

Jet 691183 JVM-836-3 Mill With Newall DP700 DRO With X And Y-Axis Powerfeeds

Jet 691183 JVM-836-3 Mill With Newall DP700 DRO With X and Y-Axis Powerfeeds

Jet 691183 is a JVM-836-3 Milling Machine with C80-DRO and X andY Powerfeed. Precision bored and honed milling head. Hardened and ground precision table.

• Large diameter quill is chromed
• High precision spindle bearings
• Over 10” of front to back ram travel
• Locks on all movable surfaces
• Head tilts left or right
• Graduated scale on column
• Precision ground dovetail ways
• One shot lubrication system

Specifications:

• Motor: 1-1/2 HP., 230V only, 3 Ph
• Number of Spindle speeds: 10
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 Inch
• Head Movement (deg.): 90º R & L
• Max Distance Spindle to Table: 13-3/4 Inch
• Distance Spindle to Column: 15-1/4 Inch
• Table Longitudinal Travel: 22-1/4 Inch
• Table Cross Travel: 9-1/2 Inch
• Collet Capacity: 1/8 – 7/8
• T-Slots Number and Size: 3 and 5/8 Inch
• T-Slot Centers: 2-1/2 Inch
• Work Table Weight Capacity (lbs.): 500
• Travel of Knee: 14 Inch
• Travel of Ram: 10/1/2 Inch
• Range of Spindle Speeds (RPM): 120 – 1550
• Table Size: 7-7/8 x 35-3/4 Inch
• Distance Spindle to Column (min./in.): 5-1/4
• Height: 67 Inch
• Width: 56 Inch
• Length: 66 Inch

Includes:

• Way covers
• Draw bar
• Tool box and tools
