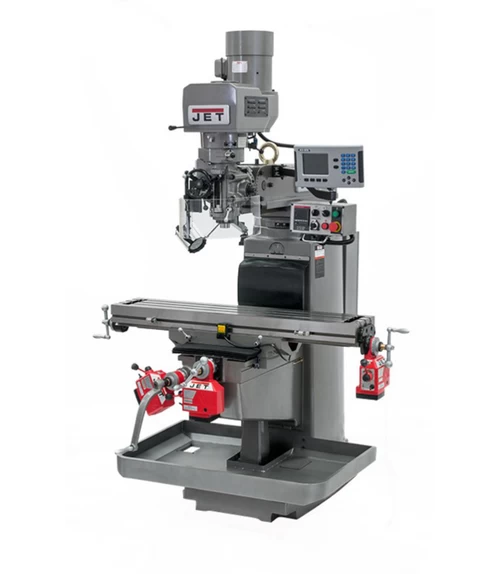

Jet 690650 JTM-1050EVS2/230 Mill Acu-Rite 200S DRO XYZ-Axis Pwrfd, Air Pwr Drwbr

Jet 690650 JTM-1050EVS2/230 Mill With Acu-Rite 203 DRO With X, Y and Z-Axis Powerfeeds and Air Powered Drawbar

Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10″ x 50″ Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you’ve come to expect and are backed by the industry-leading JET Two Year Warranty

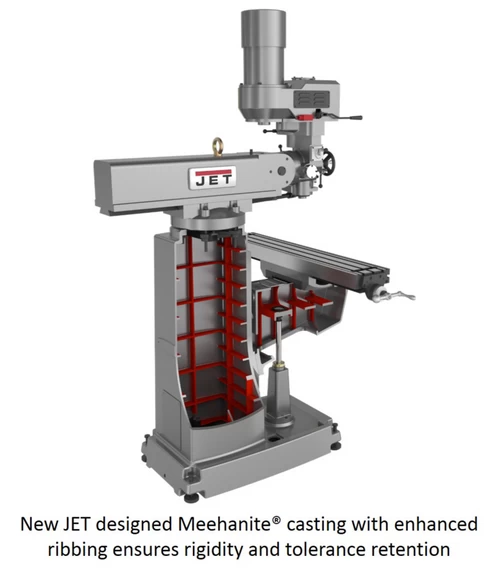

• New! JET designed Certified Meehanite? casting with enhanced ribbing ensures rigidity and tolerance retention

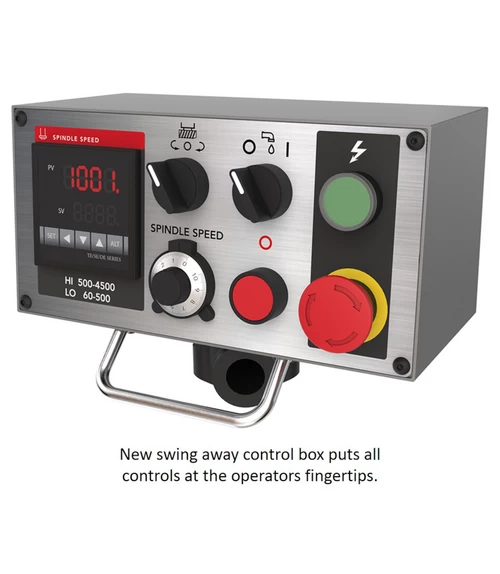

• Swing away control box houses an e-stop and puts all controls at the operators fingertips

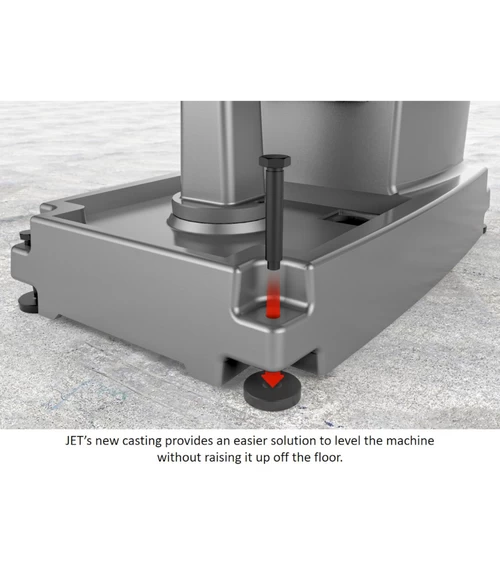

• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
• For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• CSA/CUS Certified
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Spindle head is internally cooled extending bearing, belt and motor life
• Table and ways are hardened and precision ground for greater accuracy

Specifications:

• Weight: 2658
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 14-3/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Min.) (In.): 4-3/4
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Work Table Weight Capacity (Lbs.): 840
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 – 7/8
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 87
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 60 – 4,500
• Head Movement (Deg.): 90øR & L 45ø F & Bÿ
• Motor (HP): 3 HP, 230V, 3Ph
• Style (Type): EVS
• Table Size (L x W) (In.): 10 x 50
• Distance Spindle to Column (Max.) (In.): 26-3/4
• T-Slots Number and Size (In.): 3 and 5/8
• Digital Readout: ACU-RITE 200S
• Powerfeed: X, Y and Z-Axis
• Power Draw Bar: Pneumatic
• Travel of Knee (In.): 16-1/8
• Travel of Ram (In.): 15-7/8
• Max Distance Spindle to Table (In.): 20-3/4
• Table Longitudinal Travel (In.): 35-1/3
• Table Longitudinal Travel With Powerfeed (In.): 29-7/8
• Saddle Width (In.): 11-1/2
• Column Width (In.): 20
• Inverter Type: Delta, B
