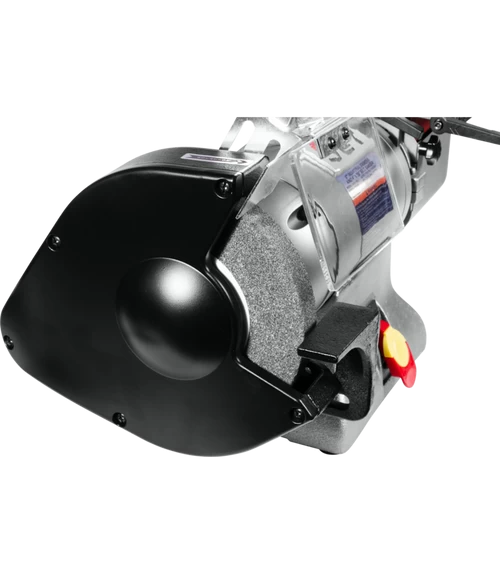

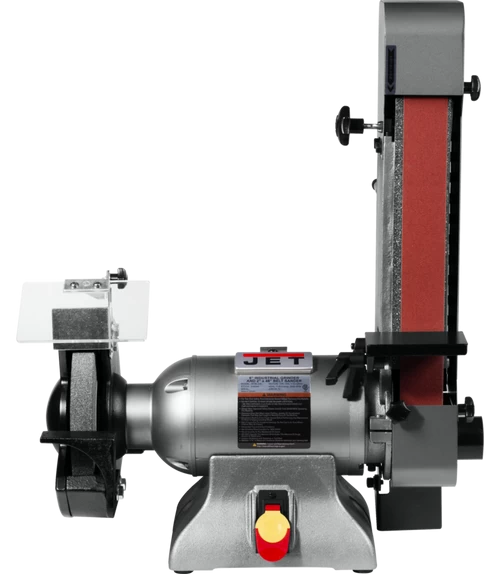

Jet 578248 IBGB-248 8-Inch Industrial Grinder And 2 X 48 Belt Sander

The IBGB-248 Combination 8’’ Grinder and Belt Sander is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. The combination grinder and belt sander include safety on/off switches, a removable key, and OSHA compliant large adjustable protective shielding.

• Heavy-duty capacitor motor
• Rubber sealed bearings for years of maintenance free sanding on idle wheel
• Industrial strength construction for demanding usage
• Totally enclosed pre-lubricated ball bearings for motor
• CSA/US: Following strict guidelines and electrical requirements, this JET Combination 8″ Grinder and Belt Sander is CSA/US certified
• Large eye safety shields
• Innovative safety guarding surrounding the sanding belt
• Rubber mounts prevent movement

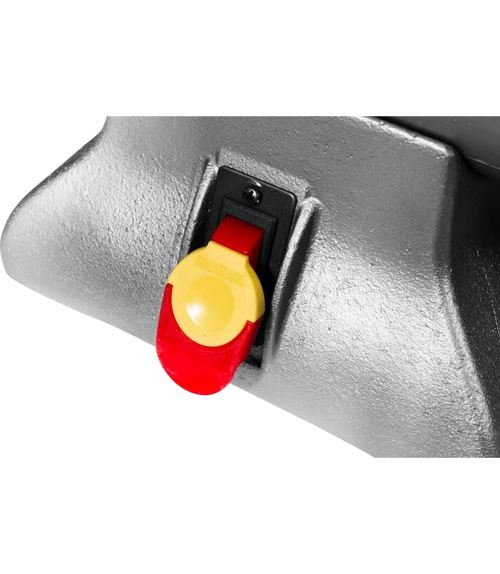

• Safety switch with removable key
• Single Speed
• Two 2″ round dust ports
• Wheel dresser included
• Belt tensioning handle

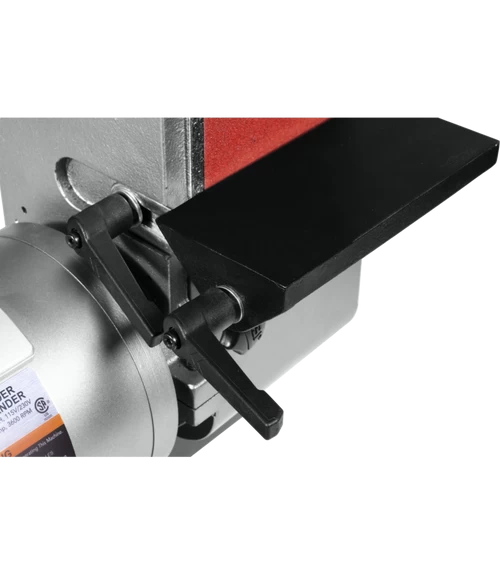

• Removable platen

Specifications:

• Shaft Diameter (In.) : 5/8
• Belt Size (W x L) (In.) : 2 x 48
• Belt Speed (SFPM) : 4712
• Motor (HP) : 1HP, 115/230V, Single Phase
• Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel) : 21-1/4 x 24-3/4 x 13-15/16
• Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical) : 21-1/4 x 12-9/32 x 25-29/32
• Weight (Lbs.) : 96
• Net Weight (Lbs.) : 78
• Gross Weight (Lbs) : 96
