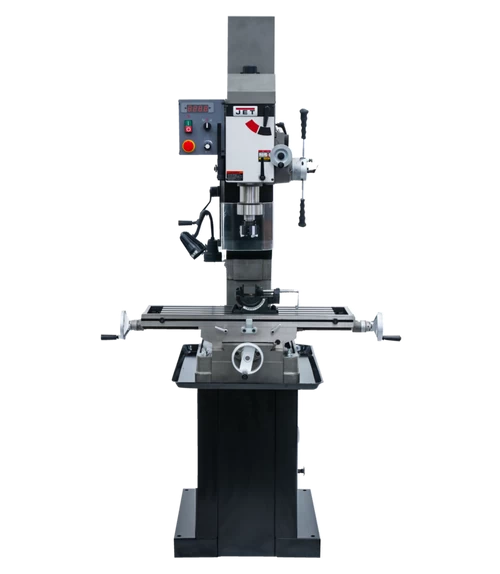

Jet 351154 JMD-45VSPF VS Square Column Mill/Drill W/Newall DP700 2-Axis DRO

Jet 351154 JMD-45VSPF VS Square Column Mill/Drill w/Newall DP700 2-Axis DRO

Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments.

• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through 6 speed geared head
• Square column with dovetail ways
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90 degrees
• Rapid spindle speed changes through quick-select gear shift levers

Specifications:

• Length: 29 in.
• Width: 36 in.
• Height: 50 in.
• Weight: 791 lbs.
• Base Dimension: 26-11/16 in. x 15-15/16 in.
• Column Diameter: 7-7/8 in. x 7-5/8 in. (Square)
• Digital Readout: Newall DP700 2-Axis DRO
• Distance Spindle to Table: 18-1/8 in.
• Drilling Capacity: 1-1/2 in.
• End Mill Capacity: 3/4 in.
• Face Mill Capacity: 4 in.
• Longitudinal Table Travel (Xaxis): 20-1/2 in.
• Motor: 1-1/2 HP
• Number of Spindle Speeds: Variable
• Phase: 1
• Quill Diameter: 3 in.
• Range of Spindle Speeds: 50 – 2,500 RPM
• Spindle Taper: R-8
• Spindle Travel: 5 in.
• Swing: 19-11/16 in.
• Table Size: 9-1/2 in. x 32-1/4 in.
• Voltage: 115V/230V
