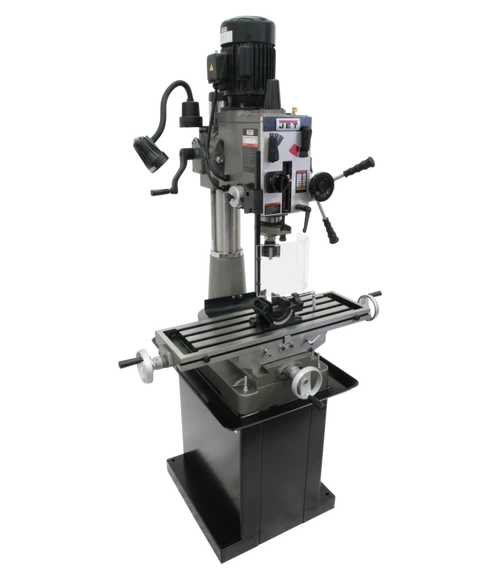

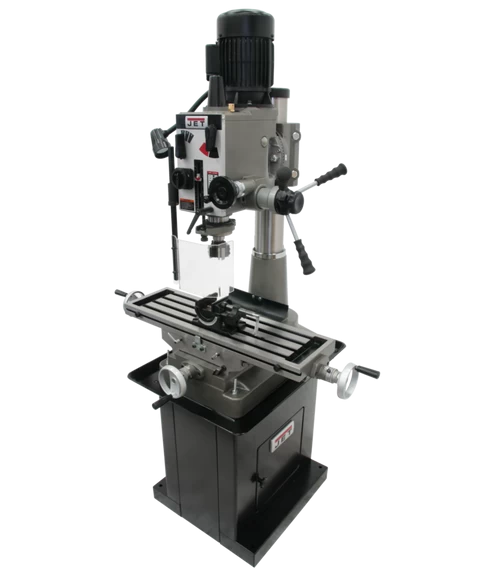

Jet 351141 JMD-40GH Geared Head Mill/Drill With Newall DP700 2-Axis DRO

Jet 351141 JMD-40GH Geared Head Mill/Drill with Newall DP700 2-Axis DRO & X-Powerfeed

Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.

• Heavy-duty design allows for a variety of precision drilling applications

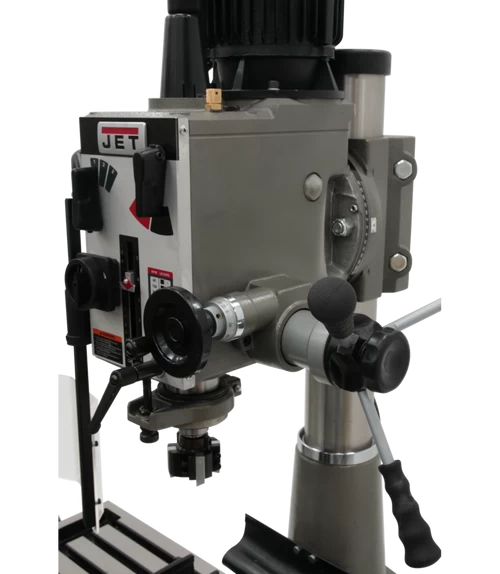

• Full power to the cutting tools through 6 speed geared head
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90º
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Power Downfeed standard
• Milling table allows for movement
• R8 spindle allows use of all mill tooling
• Mill Drill Stand, p/n 320020, shown in some images, is optional

Specifications:

• Powerfeed: X-Powerfeed
• Digital Readout: Newall DP700 2-Axis DRO
• Drilling Capacity (In.): 1-1/2
• Face Mill Capacity (In.): 4
• End Mill Capacity (In.): 3/4
• Swing (In.): 21
• Max Distance Spindle to Table (In.): 15-3/4
• Spindle Taper (In. x TPI): R8
• Spindle Travel (In.): 5
• Spindle Travel Auto (In.): 4-1/2
• Quill Diameter (In.): 3
• Column Diameter (In.): 4-1/2
• Number of Spindle Speeds: 6
• Range of Spindle Speeds (RPM): 65-1550
• Table Size (L x W) (In.): 8-1/4 x 28-3/4
• Table Longitudinal Travel (In.): 20-1/2
• T-Slots Number and Size (In.): 4 & 5/8
• Base Dimensions (In.): 24-1/4 x 15-15/16
• Motor (HP): 1-1/2HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 28 x 39-1/4 x 42-1/2
• Weight (Lbs.): 721
• Height: 42.50
• Length: 28.00
• Weight: 694.00
• Width: 39.25
