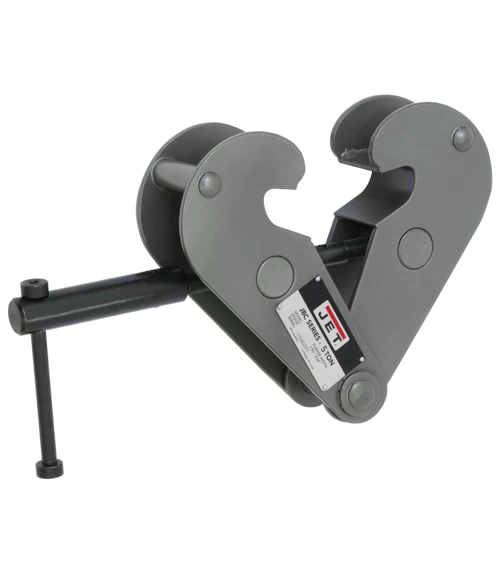

Jet 252750 JBC-5, 5-Ton Beam Clamp

Jet 252750 JBC-5, 5-Ton Beam Clamp

JET JBC Series features a more robust construction for increased durability and longer life in demanding industrial environments. The JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams.

Durability:

• Robust construction for increased durability and longer life in demanding industrial environments
• Welded, enclosed pockets provide greater stability and durability where the beam clamp attaches to the beam/structure
• Larger, thicker diameter pins for increased durability and life
• Welded all-steel frame and powder coat finish provide maximum durability and protection

• Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
• Used for quick mounting of a hoist on a broad range of beams up to 10-5/8 inches wide for increased versatility

Standards:

• Complies with ANSI / ASME B30.17 and B30.20 standards
• Load tested to 125% of capacity with certificate

Specifications

• Load Capacity (Tons): 5

• Maximum Beam Flange Width (In.): 10-5/8
• Minimum Beam Flange Width (In.): 5
