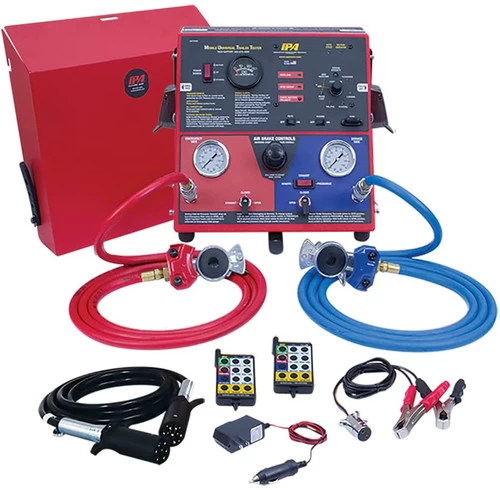

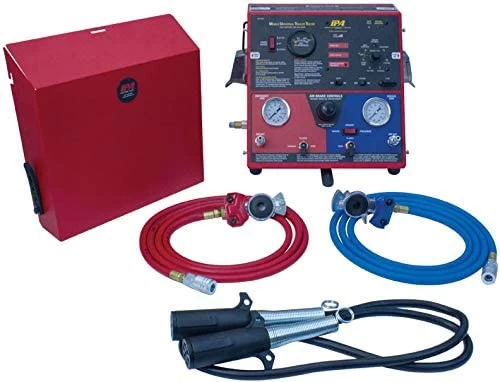

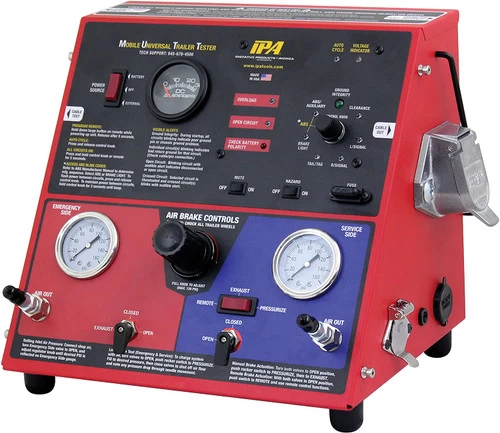

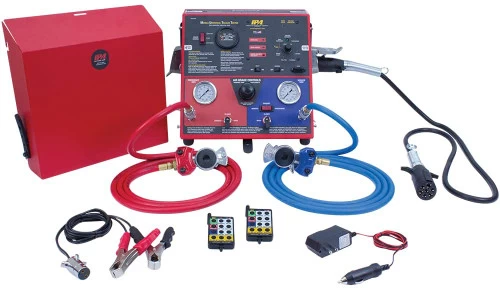

Innovative Products of America 9005A Super MUTT Head Trailer Tester (7 Round Pin Style)

The Super-MUTT® HEAD is a portable, remote controlled diagnostic Trailer Tester for inspecting lighting, ABS and air brake systems on commercial type trailers. Specially designed for service trucks and offsite inspections, the Super MUTT® head is powered by an (optional) internal 12v battery, or external power source such as a service truck battery, using the supplied external connector and requires shop air for air brake application. The Super MUTT® head features the same industry leading diagnostic program as the Super MUTT® Deluxe and Smart MUTT® which instantly identifies Crossed, Open, Shorted Circuits, bad grounds, and overloads. The Super MUTT® Head is available in two equipment packages: includes Glad Hand hoses, 7-way cable, external power supply cord, (3) remote controls, battery charger, Face Shield and chassis ground connector.

Operate air brakes by remote control (100 foot operating range)
Real time, repetitive brake activation to find developing problems and verify leaking servo cans
Perform leak down test on service and emergency lines
Adjust slackers and measure pushrods using remote control
Power lights individually, all at once, via auto scan or remote control
Ground failure detection: differentiates between wire and chassis ground
Indentifies open circuits and cross-wired circuits
Pulses power to shorted and overloaded circuits (patented Pulsar® technology)
ABS fault codes via Aux and brake circuit activation (i.e. Wabco/Bendix Tab-6 systems)
Amperage readout (0-20 amps)
Audible and visual alerts
7-way “pigtail” Cable Testing
Sync Multiple (24) Remotes to one unit
Made in USA
Internal Battery Compartment (Fits YAUSA YTX14 or Similar Battery )
