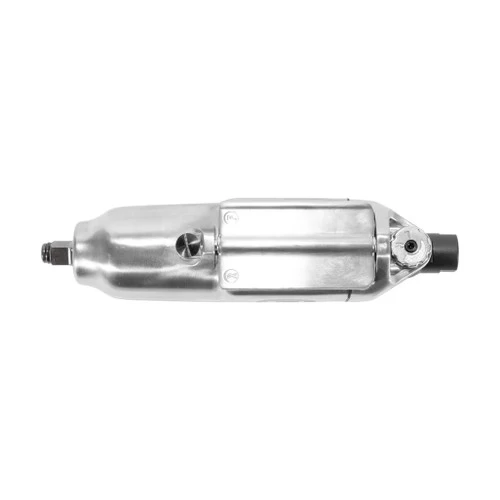

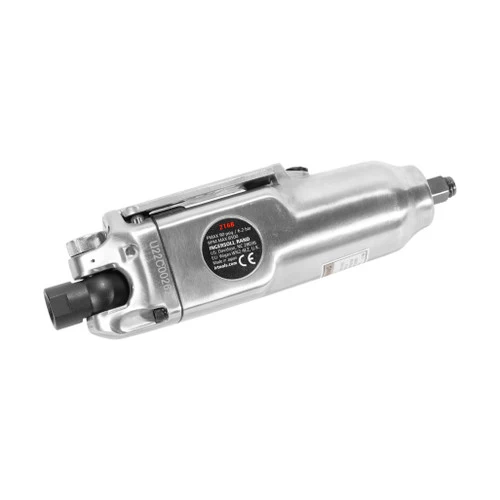

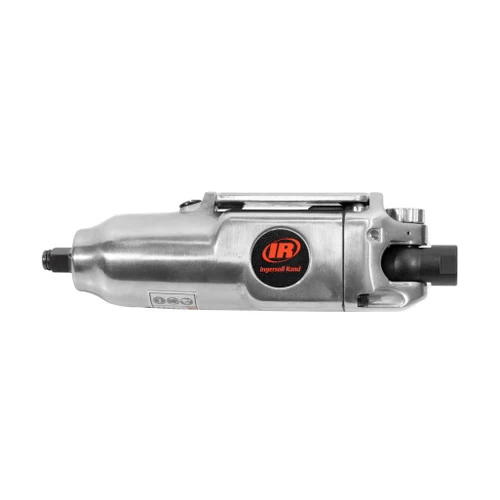

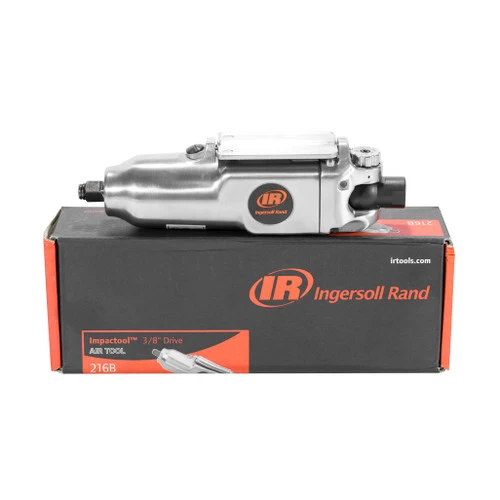

This air impact wrench, aka butterfly wrench or butterfly impact wrench, is used for a variety of auto shop and small engine repair applications. It comes in handy when working in cramped spaces. Ingersoll Rand equipped this inline impact wrench with a butterfly-style throttle valve. This lets users smoothly adjust the speed in one continuous motion. JB Tools is your No. 1 source for this air impact wrench and other Ingersoll Rand tools.

KEY FEATURES & BENEFITS:

Delivers 200 ft-lbs. of maximum torque for tough jobs
Lightweight, ergonomic design offers comfortable use
Can be held in the palm of the hand
Offers lower torque and smaller drive than other impact wrenches
Recessed regulator dial

TECHNICAL SPECS:

Air Consumption at Load: 19 cfm

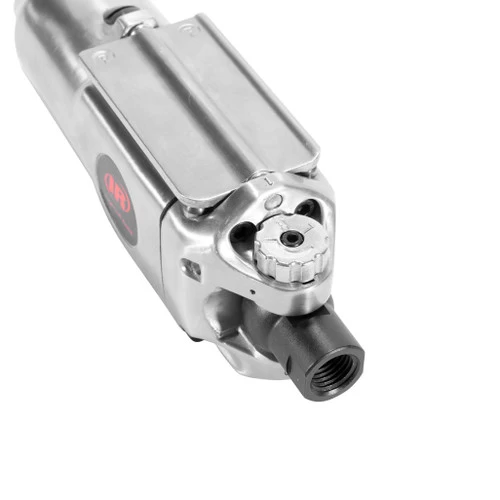

Air Inlet NPTF: 1/4”
Average Air Consumption: 3 cfm
Min. Air Pressure: 90 PSI
Max. Air Pressure: 100 psi
Min. Hose Size: 0.375”
Exhaust Location: Bottom
Duty Rating: General Duty
Breakaway Torque: 200 ft-lb
Fastening Torque: 200 ft-lb
Free Speed: 8,500 RPM
Impact Rated: Yes
Impact Sound Level: 90 dB
Impacts per Minute: 1,600
Number of Speed Settings: Continuous
Power to Weight Ratio: 71.4 ft-lb-lbs.
Length: 7.7”
Weight: 2.8 lbs.
Maximum Free Speed: 8¸500 rpm
Maximum Torque in Reverse: 200 ft-lbs.
Sound Pressure/Power: 94.8/105.8 dBA
Working Torque Range: 15-160 ft-lbs.
Drive Size: 0.375” square
Drive Type: Standard
Retainer Type: Friction ring
Clutch Style: Ball and cam
Tool Style: Full-size
Vibration Level: 5.2 m/sq sec
Overall Length: 7.625”
Handle Material: Aluminum
Housing Material: Aluminum
