220V 3 Phase 13″ Manual Dual Mitering Band Saw

Need to increase production? The manual BS-20M-DM dual miter band saw offers hydraulic descent, a roller infeed, and a material stop for efficiency. With its steel frame, the saw will last for many years.

*Inverter drive lets you adjust blade speed: 69 to 306 fpm.

*Accepts large 1.25” blade (included) for speed and accuracy. The larger the blade, the straighter the cut.

*Available in 220-volt triple-phase or 440-volt triple-phase (special order) models.

*Industrial reduction gearbox transmission makes the saw more reliable than one with a belt and pulley system.

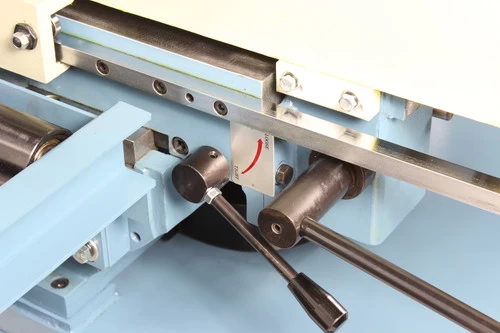

*Miters 45° left and 60° right. Just push or pull the head to the angle you need.

*Rigid cast iron bow adds to the structural strength of the machine and reduces vibrations.

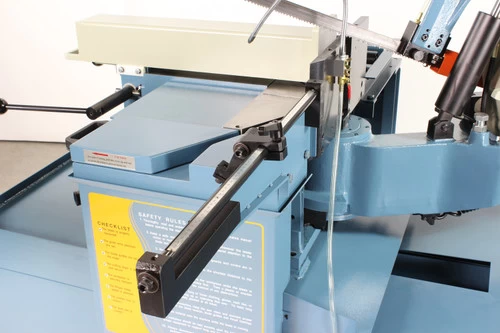

*Quick-lock vise has serrated jaws that grip onto round material, preventing it from spinning and ruining a blade.

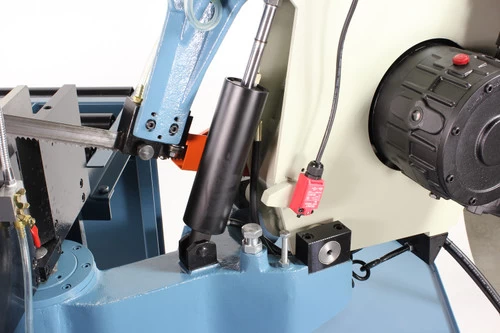

*Hydraulic descent allows you to select the proper speed, increasing cut quality and blade life.

*Roller infeed and outfeed table enables you to slide the material to and from the blade, saving strain.

*Includes a material stop for conveniently making repeat cuts.

*Digital readout shows the blade speed. Adjust the dial to use the same settings for multiples of a part.

*Electro-welded steel frame keeps vibrations down to a minimum, so your cuts stay straight and accurate.

*Our patented blade tensioning gauge simplifies the process of checking the tension and adjusting it. Just line the black arrow up with the green area.

*High-pressure flood coolant system washes away chips and helps the blade last longer.

*Huge chip tray at the bottom collects debris and keeps your shop clean.

*Automatic shut-off system stops the machine once it’s done cutting, for your safety.

*We typically keep this saw and its parts in stock for fast deliveries.

*Covered by a 1-year parts warranty.

*The dual mitering horizontal band saw comes with lifetime technical support by phone. Call up our team of experienced reps for troubleshooting or project advice.

Specifications:
