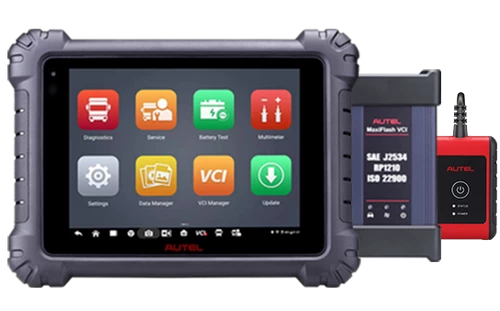

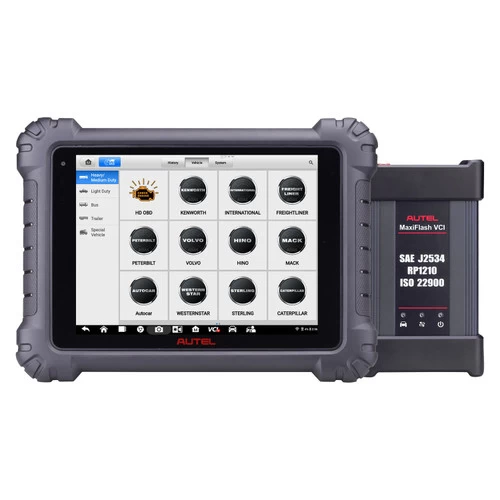

Autel USA MS909CV MaxiSYS Heavy Duty Scan Tool Kit / Diagnostic Tablet, USA Version

Autel USA MS909CV MaxiSYS Heavy Duty Scan Tool Kit / Diagnostic Tablet

Autel USA version with support & warranty through Autel USA in New York. Includes 1 year of free updates



FIVE-IN-ONE DEVICE

NEW Combination Vehicle Communication and Measurement Interface

• D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types
• DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models
• NEW Oscilloscope – Faster Bandwidth 20MHz / Sample Rate 80MS/s
• Higher 12-Bit Resolution / Larger Memory 32Mil Samples



Affordable Test Component Combination for Repair Confirmation

• Combined Signal Detection and Signal Stimulation
• OBDII Channel Detection / DLC Pin Location and Direct Measurement
• Protocol CAN Testing / Advanced Triggering / Auto-Scale Zooming

Easier Operation of Built-In Preset Guided Tests for Faster Operation

• Custom Probe Specification & Reference Waveform Libraries
• Saved Test Configurations / Component Tests / Data Graphs



:

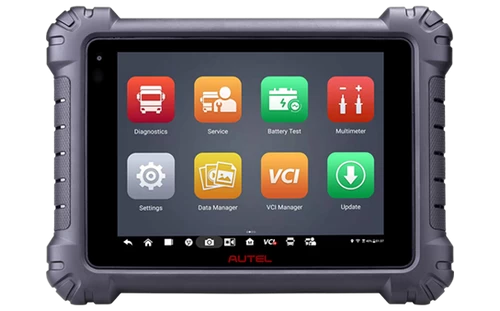

•Upgraded Octa-Core processor and 128GB storage and Android 7.0 Operating System with 9.7” Touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation

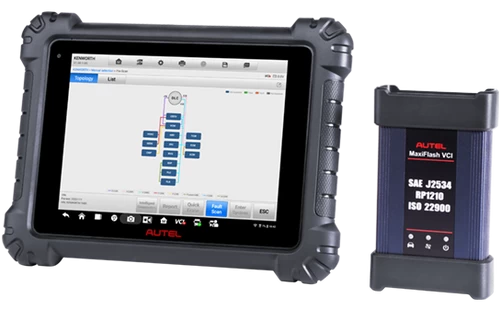

•Intelligent Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan and DTC Analysis / Repair Guided Assist

•ADAS Calibration with new Class 6-8 Dynamic Calibration, Supporting Class 3-5 Complete ADAS Coverage. The Class 6-8 Static Calibration (coming soon)

•Support heavy Duty Battery Test & Health Report



Operating   System	Android 7.0
Processor	Samsung   Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz   Quad-core A53)
Memory	4GB   RAM & 128GB On-board Memory
Display	9.7-inch   TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2   (802.11 a/b/g/n/ac 2×2 MIMO)
	BT v.2.1 + EDR
	GPS
	USB 2.0 (TWO USB HOST Type A, ONE USB mini   device)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear:   16 Megapixel, Autofocus with Flashlight
	Front: 5.0 Megapixel
Sensors	Gravity   Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH   3.8V lithium-polymer battery
	Charging via 12V AC/DC power supply with the   temperature between 0°C and 45°C
Input Voltage	12V/3A   Adapter
Operating Temperature	0   to 50°C (32 to 122°F)
Storage Temperature	-20   to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4   mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight	1.66kg   (3.66 lb.)
Protocols	DoIP,   PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire   Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda   Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART   with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,   SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
