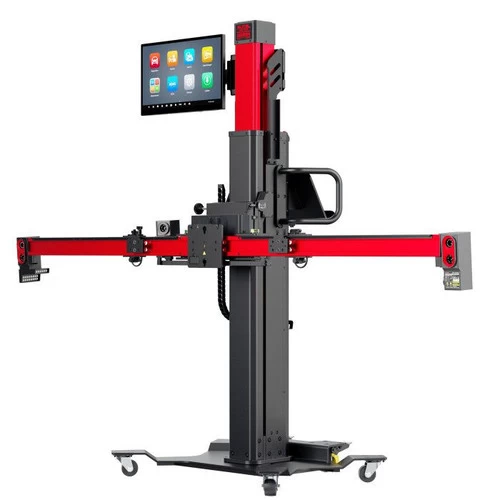

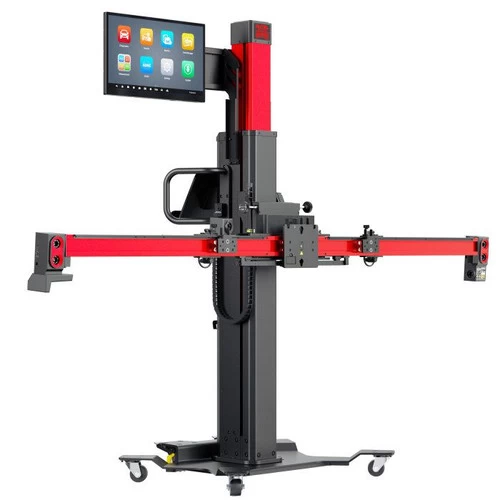

Autel IA900WA Wheel Alignment ADAS Calibration Frame

Autel IA900WA Wheel Alignment ADAS Calibration Frame

• Control IA900 From MaxiSYS UltraWA or 24″ Touchscreen
• Crossbar Control Pitch, Roll, Yaw, and Center
• New Folding Crossbar Locking Mechanism
• Self Calibrating Camera
• Built-In Cable Management
• Consolidated Power Supply
• MaxiSYS Tablet Holder with Built-In Charger
• MaxiSYS Interface for Wheel Alignment
• Precise Optical Measurement with 6 High Resolution Cameras
• Self Calibrating Cameras, Always Accurate, Every Time
• Cameras Automatically Track Vehicle Height On Lift
• Frame capable of performing 4-Wheel alignment and ADAS calibration
• Six high-resolution positioning and tracking cameras in frame
• Includes 24″ touchscreen display that attaches to frame unit
• MaxiSYS software interface monitors and displays alignment measurements
• Robotic frame movement
• Alignment coverage includes U.S., Asian and European vehicles, 1996 and newer
• Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen

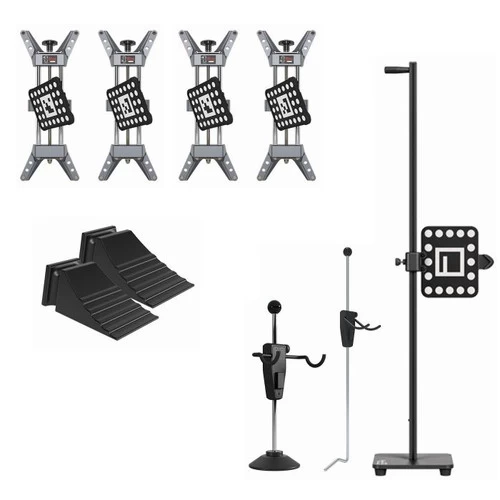

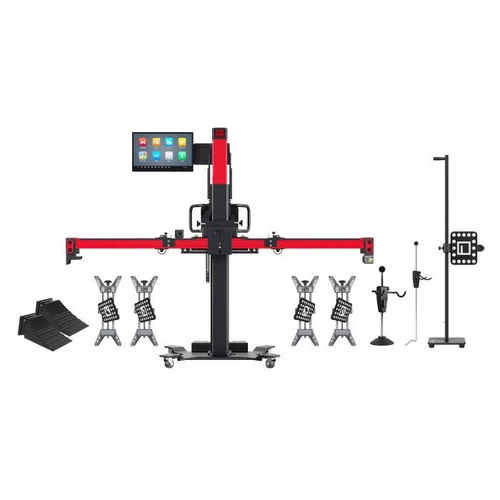

• Includes four-wheel clamps with camera targets, steering wheel lock and wheel chocks
• One-year warranty

IA900 Wheel Alignment Software

• Vehicle Inspection of Tires, Brakes, Suspension, Steering & More.
• Mark Service Recommendations, Attach Photos, Videos & Notes.
• Live Alignment Reading Display.
• View All Alignment Results, Rear Only, Front Only, Chassis Symmetry, & Tire Diameter.
• Illustrated Alignment Guide, Live Readings, Required Tools & Adjustment Locations Display on a Single Screen.

IA900 ADAS Calibration Software

• The Industry’s Fastest & Most Accurate Frame Placement with Target Position Validation.
• Step-By-Step Illustrated Full-Color Instructions Walk the User Through the ADAS Calibration Process.
• Set ADAS Calibration Target Height with the Push of a Button.

Specifications

• Minimum Height: 6″
• Maximum Height: 7′
• Pallet Shipping Weight: 655 lbs.
• Pallet Shipping Dimensions: 86″ x 52″ x 42″
• Warranty: One Year Limited
